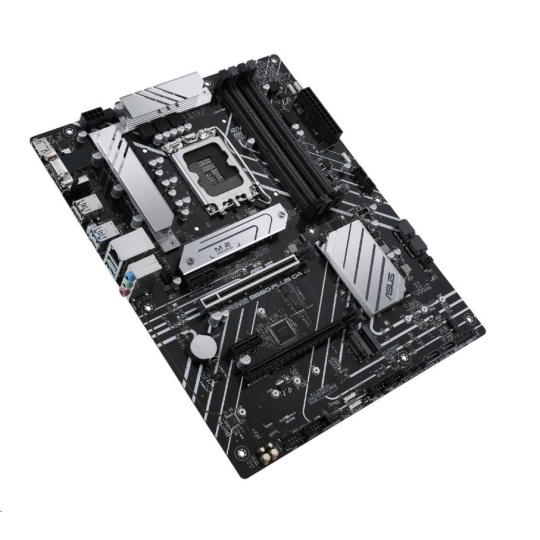

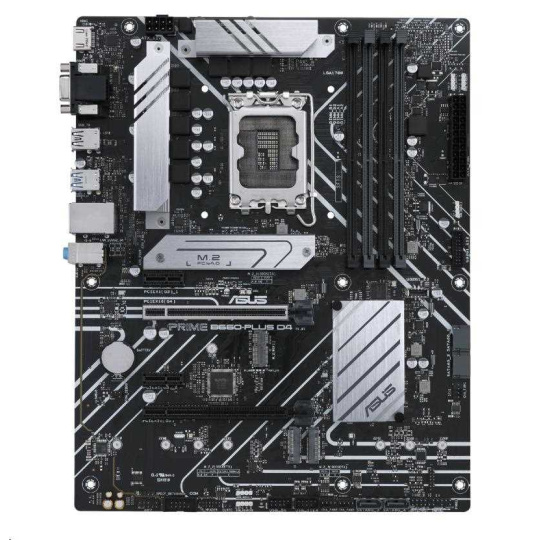

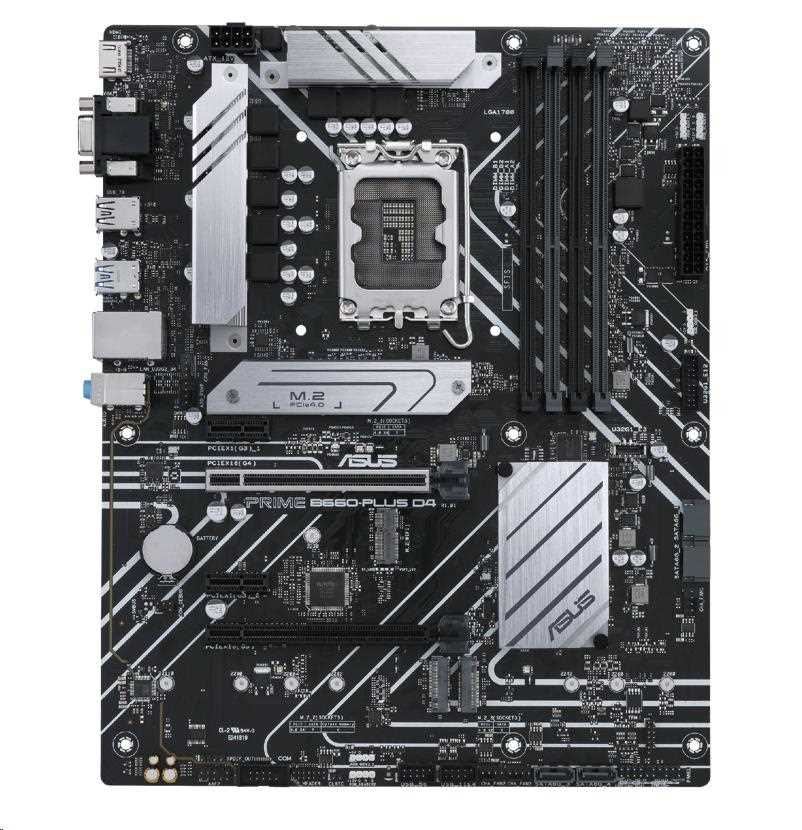

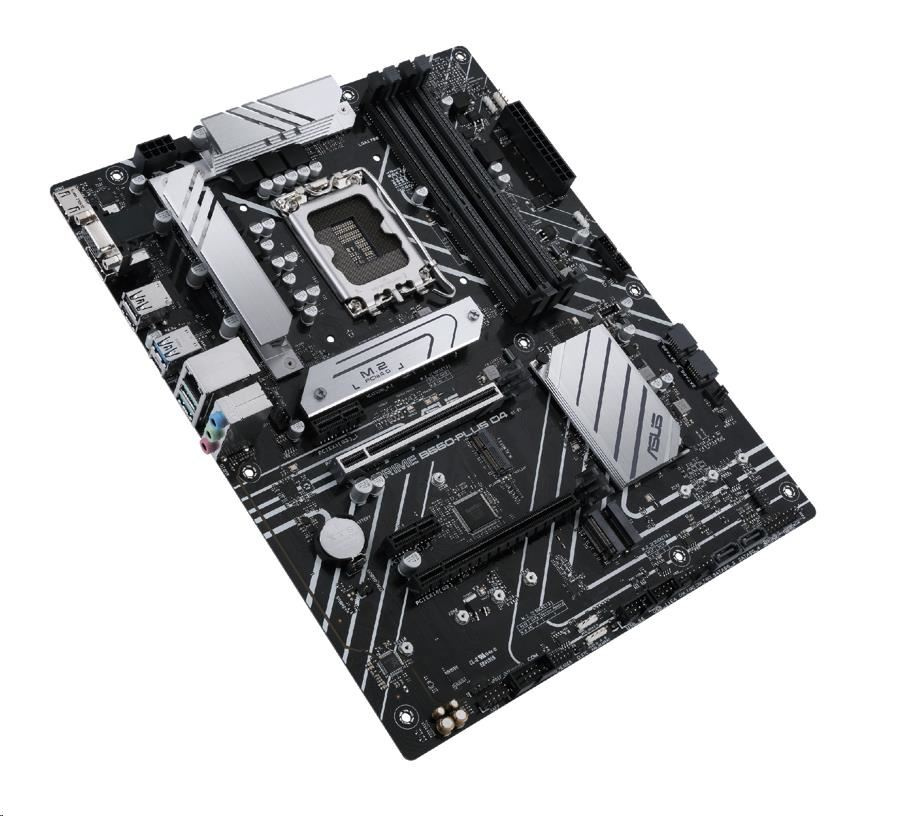

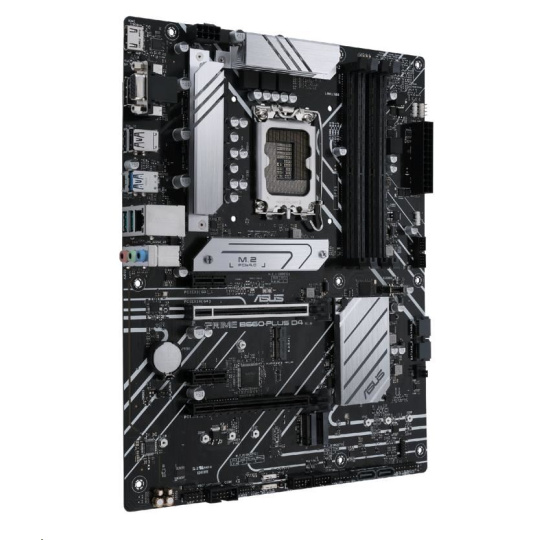

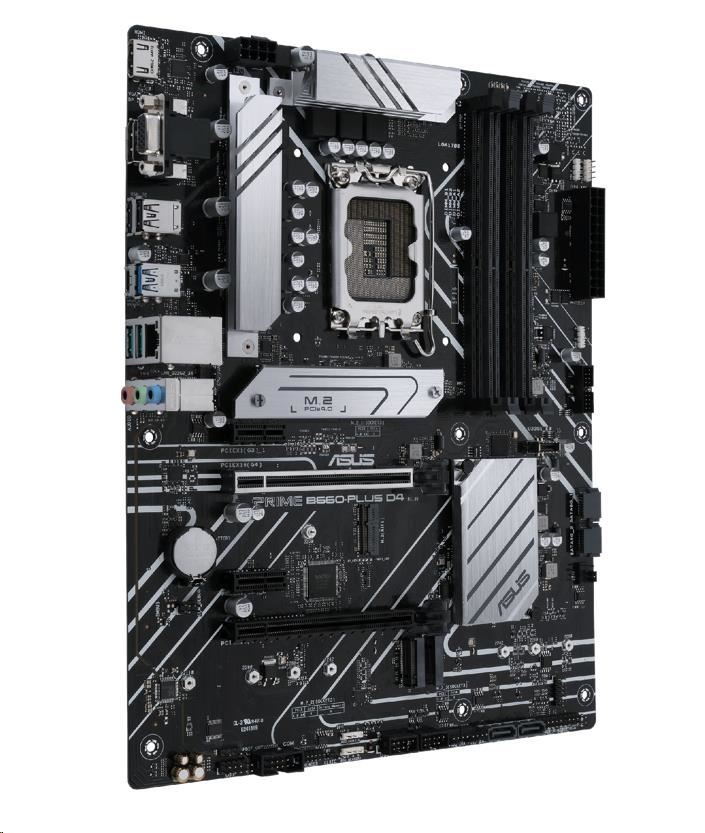

ASUS MB Sc LGA1700 PRIME B660-PLUS D4, Intel B660, 4xDDR4, 1xDP, 1xHDMI, 1xVGA

Name: ASUS MB Sc LGA1700 PRIME B660-PLUS D4, Intel B660, 4xDDR4, 1xDP, 1xHDMI, 1xVGA
Brand: Asus
SKU: 1887313
Price: 3124 CZK
Availability: OutOfStock

-9%

Kód: 1887313

Kód dod.: 90MB18X0-M1EAY0

EAN: 4711081523017

Záruka: 36 Měsíc(ů)

Výrobce: Asus

Do oblíbených Porovnání Dotaz prodejci Hlídání

Popis a parametry

ASUS MB Sc LGA1700 PRIME B660-PLUS D4, Intel B660, 4xDDR4, 1xDP, 1xHDMI, 1xVGA

PRIME B660-PLUS D4

TECHNICAL SPECIFICATIONS

CPU	Intel® Socket LGA1700 for 12^th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
	Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
	* Refer to www.asus.com for CPU support list.
	** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel® B660 Chipset
Memory	4 x DIMM, Max. 128GB, DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered memory*
	Dual Channel Memory Architecture
	Supports Intel^® Extreme Memory Profile (XMP)
	OptiMem
	*Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.
Graphics	1 x DisplayPort**
	1 x D-Sub port
	1 x HDMI® port***
	*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
	** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
	***Supports 4K@60Hz as specified in HDMI 2.1.
	**** VGA resolution support depends on processors' resolution.
Expansion Slots	Intel^® 12^th Gen Processors
	1 x PCIe 4.0 x16 slot
	Intel® B660 Chipset*
	1 x PCIe 3.0 x16 slot (supports x4 mode)
	2 x PCIe 3.0 x1 slots
	* Supports Intel® Optane Memory H Series on PCH-attached PCIe slot
Storage	Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
	Intel^® 12^th Gen Processors
	M.2_1 slot (Key M), type 2242/2260/2280
	- Intel® 12^thGen processors support PCIe 4.0 x4 mode.
	Intel® B660 Chipset
	M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)**
	M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
	4 x SATA 6Gb/s ports
	* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
	** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.
Ethernet	1 x Realtek 2.5Gb Ethernet
Ethernet	ASUS LANGuard
Wireless & Bluetooth	M.2 slot only (Key E, CNVi & PCIe)* *Wi-Fi module is sold separately.
USB	Rear USB (Total 6 ports)
	1 x USB 3.2 Gen 2x2 port (1 x USB Type-C^®)
	2 x USB 3.2 Gen 2 ports (2 x Type-A)
	1 x USB 3.2 Gen 1 port (1 x Type-A)
	2 x USB 2.0 ports (2 x Type-A)
	Front USB (Total 7 ports)
	1 x USB 3.2 Gen 1 connector (supports USB Type-C^®)
	1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
	2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback
	Audio Features
	- Audio Shielding
	- Power pre-regulator reduces power input noise to ensure consistent performance
	- Premium audio capacitors
	- Dedicated audio PCB layers
	* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

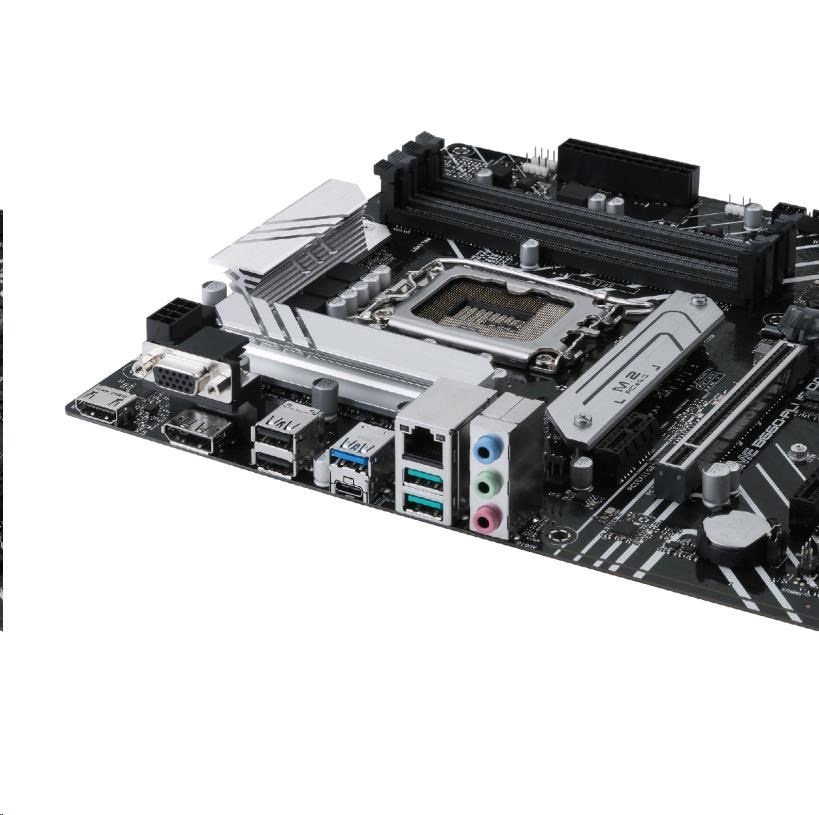

Back Panel I/O Ports	1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
	2 x USB 3.2 Gen 2 ports (2 x Type-A)
	1 x USB 3.2 Gen 1 port (1 x Type-A)
	2 x USB 2.0 ports (2 x Type-A)
	1 x DisplayPort
	1 x D-Sub port
	1 x HDMI® port
	1 x Realtek 2.5Gb Ethernet port
	3 x Audio jacks
Internal I/O Connectors	Fan and Cooling related
	1 x 4-pin CPU Fan header
	1 x 4-pin AIO Pump header
	3 x 4-pin Chassis Fan headers
	Power related
	1 x 24-pin Main Power connector
	1 x 8-pin +12V Power connector
	Storage related
	3 x M.2 slots (Key M)
	4 x SATA 6Gb/s ports
	USB
	1 x USB 3.2 Gen 1 connector (supports USB Type-C^®)
	1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
	2 x USB 2.0 headers support additional 4 USB 2.0 ports
	Miscellaneous
	3 x Addressable Gen 2 headers
	2 x AURA RGB headers
	1 x Clear CMOS header
	1 x COM Port header
	1 x Front Panel Audio header (AAFP)
	1 x M.2 slot (Key E)
	1 x S/PDIF Out header
	1 x SPI TPM header (14-1pin)
	1 x 20-3 pin System Panel header with Chassis intrude function
	1 x Thunderbolt™ header
Special Features	ASUS 5X PROTECTION III
	- DIGI+ VRM
	- Enhanced DRAM Overcurrent Protection
	- ESD Guards
	- LANGuard
	- Overvoltage Protection
	- SafeSlot Core+
	- Stainless-Steel Back I/O
	ASUS Q-Design
	- Q-DIMM
	- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
	- Q-Slot
	ASUS Thermal Solution
	- M.2 heatsink
	- VRM heatsink design
	AURA Sync
	- AURA RGB headers
	- Addressable Gen 2 headers
Software Features	ASUS Exclusive Software
	Armoury Crate
	- AURA Creator
	- AURA Sync
	- Fan Xpert 2+
	AI Suite 3
	- Performance And Power Saving Utility
	TurboV EVO
	EPU
	DIGI+ VRM
	ASUS CPU-Z
	Norton Anti-virus software (Free Trial version)
	WinRAR
	UEFI BIOS
	ASUS EZ DIY
	- ASUS CrashFree BIOS 3
	- ASUS EZ Flash 3
	- ASUS UEFI BIOS EZ Mode
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	Cables
	2 x SATA 6Gb/s cables
	Miscellaneous
	1 x I/O Shield
	1 x M.2 Rubber Package
	2 x M.2 SSD screw packages
	1 x M.2 Key E screw package
	Installation Media
	1 x Support DVD
	Documentation
	1 x User guide
Operating System	Windows® 11 64-bit, Windows® 10 64-bit
Form Factor	ATX Form Factor
Form Factor	12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
