TUF GAMING CAPTURE BOX-CU4K30

The compact, ready-to-stream ASUS TUF Gaming Capture Box delivers incredible 4K30 video with near-zero latency to captivate fans and followers.

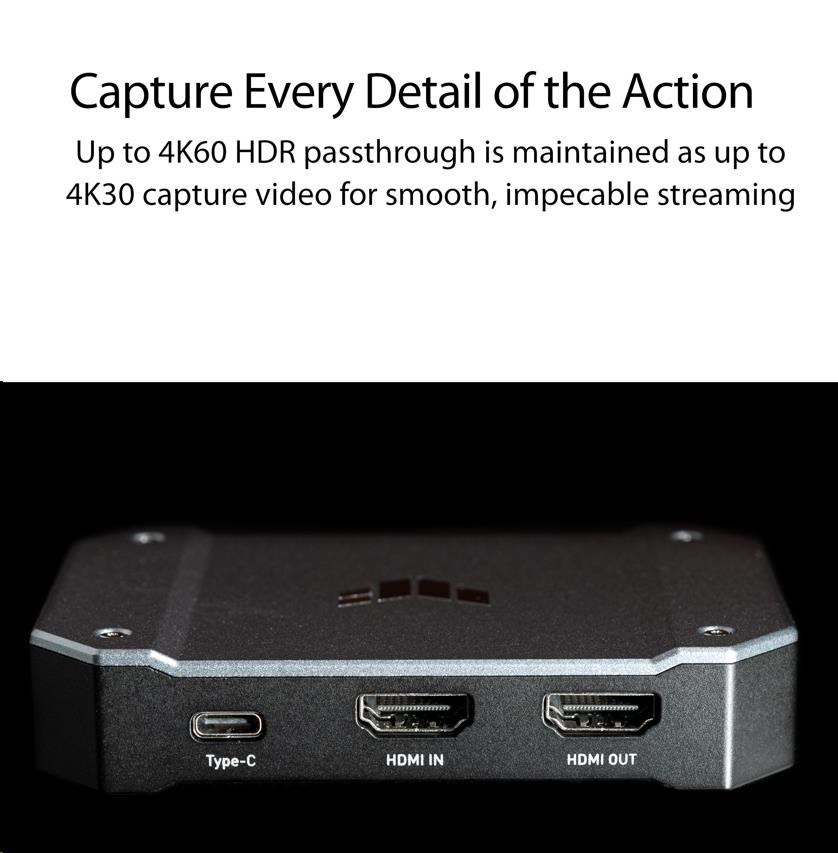

• Offers passthrough video support of 4K up to 60 Hz, 2K up to 144 Hz, and Full HD up to 240 Hz
• Delivers video streaming in 4K up to 30 fps, 2K up to 60 fps, and Full HD up to 120 fps

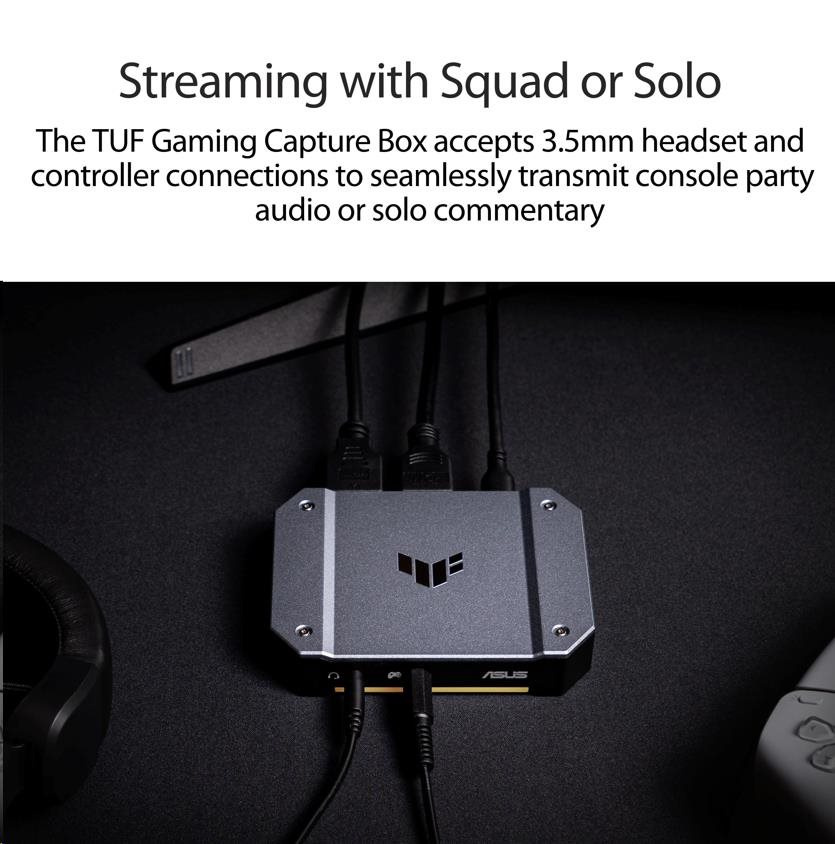

• Two 3.5 mm jacks enable connection with a controller and headset for game console party mode

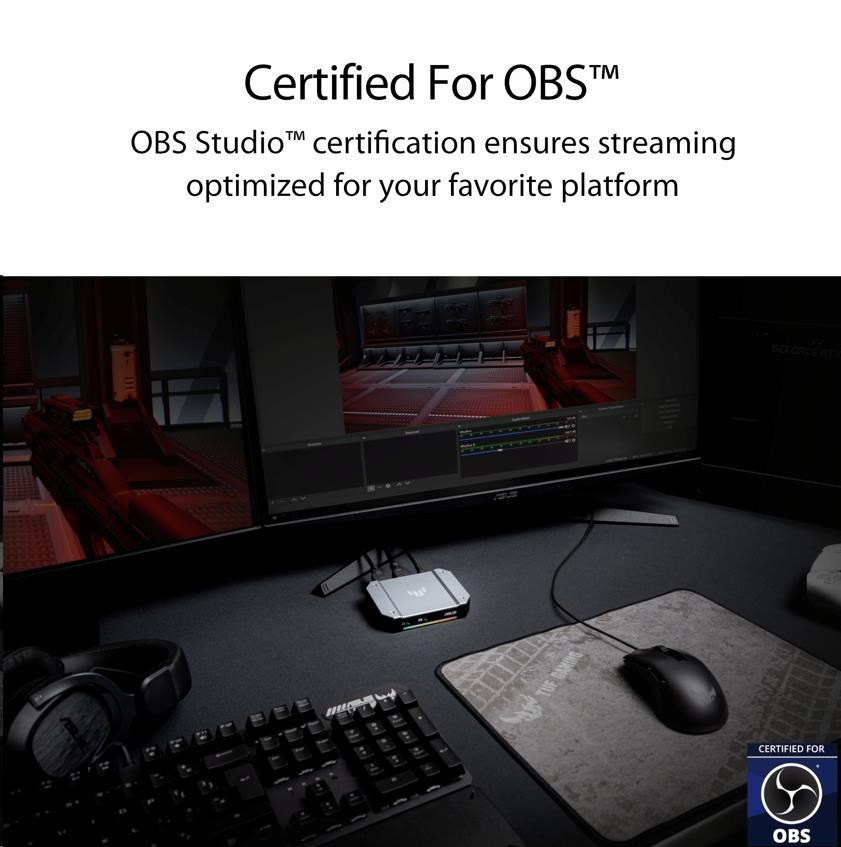

• Certified OBS Studio™ compatibility ensures optimal usage on a wide variety of streaming platforms
• Compact, half-palm-size design helps you maintain a neat workspace

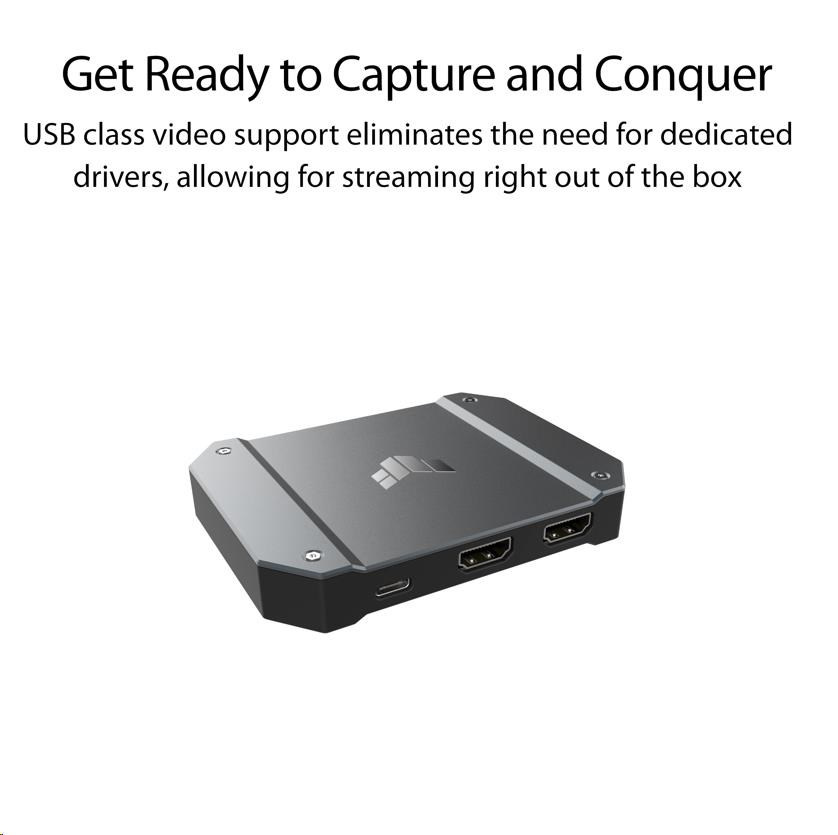

• Supports USB video class for a plug-and-play experience

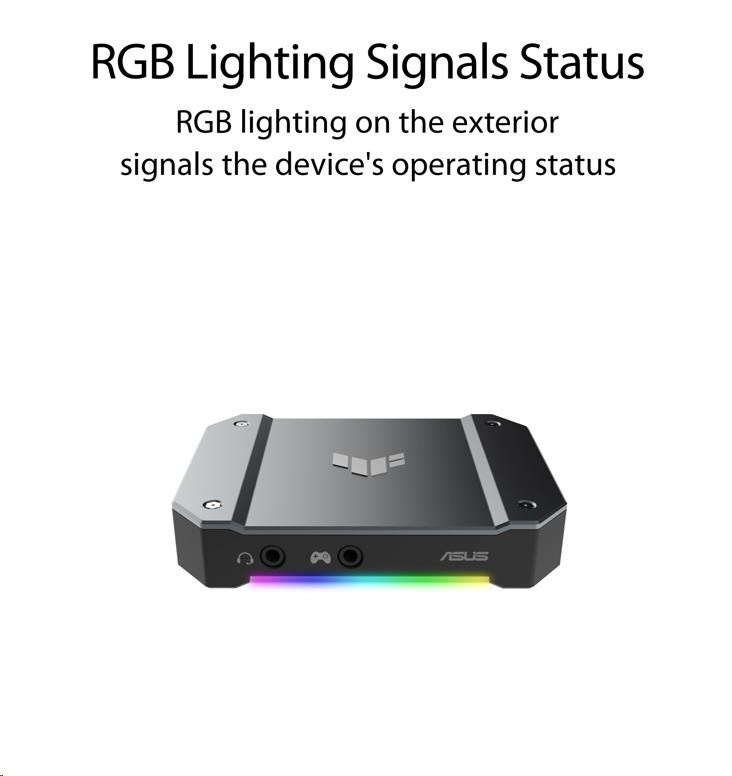

• RGB lighting on the exterior signals the device’s operating status

Product Name

ASUS TUF Gaming Capture Box-CU4K30

Interface

USB 3.2 Gen1x1 Type-C®

Video Input

HDMI 2.0

Video Output(Passthrough)

HDMI 2.0

Audio Input

HDMI 2.0

Audio Output(Passthrough)

HDMI 2.0

Video Resolution(Input)

4K60Hz HDR?1440p144Hz HDR?1080p240Hz HDR

Max Video Resolution(Passthrough)

4K60Hz HDR?1440p144Hz HDR?1080p240Hz HDR

Max Video Resolution (Recording)

USB 3.2 Gen 1x1 Type-C® : Uncompressed 2160p30/1440p60/1080p120/1080p60/1080p30/720p60/720p30/576p/480p
USB 2.0: Uncompressed 720p30

Audio Mix Input

3.5mm headset?3.5mm Gamepad
*You can download the "Audio Controller Tool" from "Driver & Utility" on ASUS official website for volume adjustment.

Game Console Compatibility

PlayStation ?Xbox ? Switch

Indicator

LED RGB full color lighting effect

Dimension(W x D x H)

10.5 x 8 x 2.1(cm)

Weight

173g

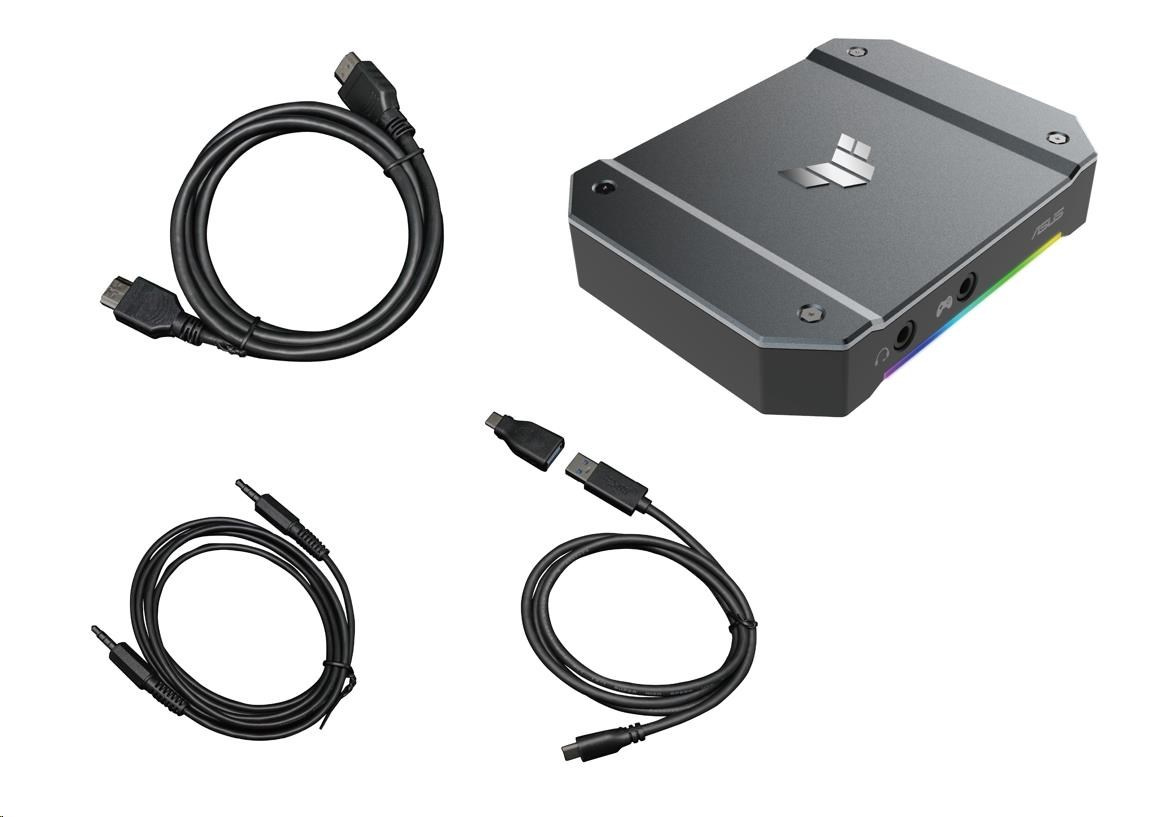

Accessory

Quick Start Guide*1
HDMI 2.0 cable*1
USB 3.2 Gen1x1 Type-C® to Type A cable*1
USB Type-A to Type-C® adapter*1
3.5 mm to 3.5mm audio cable*1

Notes

*This product does not support viewing/recording/streaming of HDCP protected signals.
*You can download a newer firmware from Driver & Utility on ASUS official website for video capture support in up to 120 fps in Full HD
*This product does not support viewing/recording/streaming of HDCP protected signals.
*You can download a newer firmware from "Driver & Utility" on ASUS official website for video capture support in up to 120 fps in Full HD

System Requirements (Desktop)

Intel® Core™ i5-6XXX or above
AMD® Ryzen™ 5 1XXX or above
Recommended:Intel® Core™ i7-6XXX or above
Recommended:AMD® RYZEN™ 7 1XXX or above
8GB or above (Dual-channel)
Recommended:16GB or above (Dual-channel)
*You have to set your memory on dual channel mode in your computer system.
NVIDIA® GeForce® GTX660 or above
AMD® Radeon™ HD7870 or above
Recommended:NVIDIA® GeForce® GTX 1060 or above
Recommended:AMD® Radeon™ RX570 or above
Requires an USB 3.2 Gen1x1

System Requirements (Laptop)

Intel® Core™ i7-4810MQ or above
AMD® Ryzen™ 5 3500U or above
Recommended:Intel® Core™ i7-7700HQ or above
Recommended:AMD® RYZEN™ 5 3550H or above
8GB or above (Dual-channel)
Recommended:16GB or above (Dual-channel)
*You have to set your memory on dual channel mode in your computer system.
NVIDIA® GeForce® GTX 870M or above
AMD® Radeon™ HD8970M or above
Recommended:NVIDIA® GeForce® GTX 1050 Ti or above
Recommended:AMD® Radeon™ RX570 or above
Requires an USB 3.2 Gen1x1
