ASUS zdroj TUF-GAMING-650B 650W, 80+ Bronze
Popis a parametry
ASUS zdroj TUF-GAMING-650B 650W, 80+ Bronze
TUF-GAMING-650B
The ASUS TUF Gaming 650W Bronze PSU leads in durability.
Features

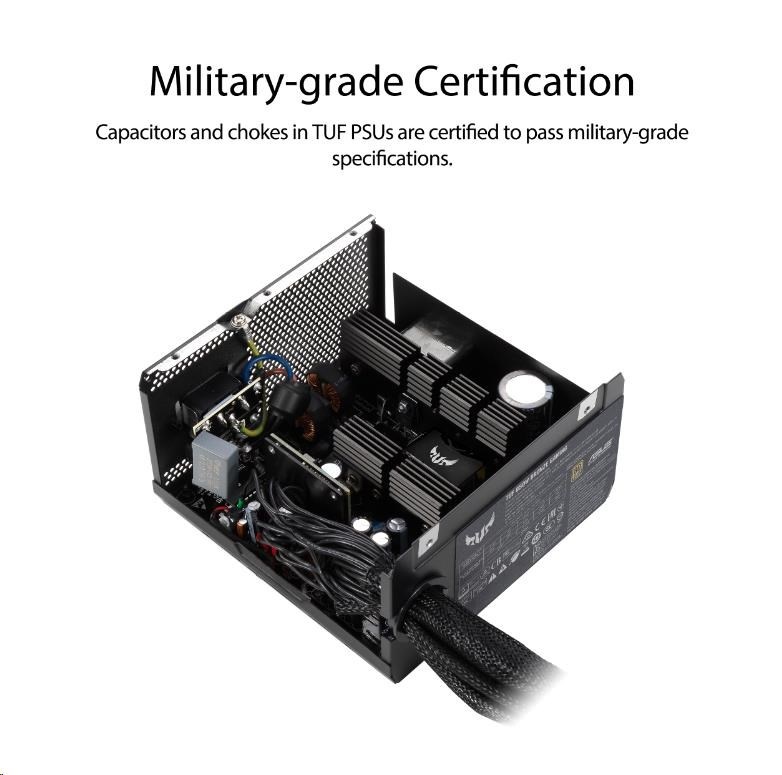

- Capacitors and chokes pass demanding tests to achieve Military-grade Certification.

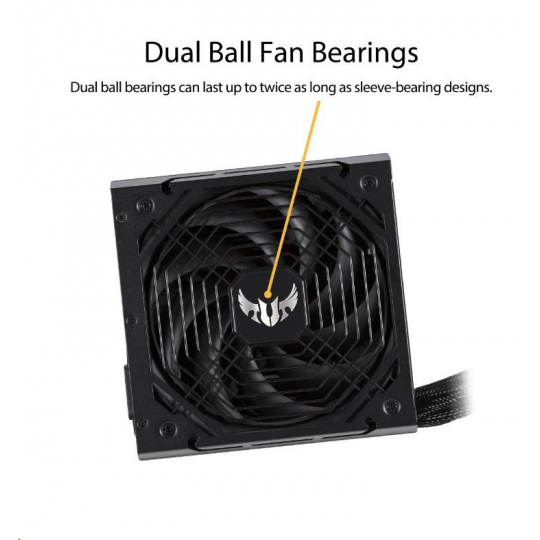

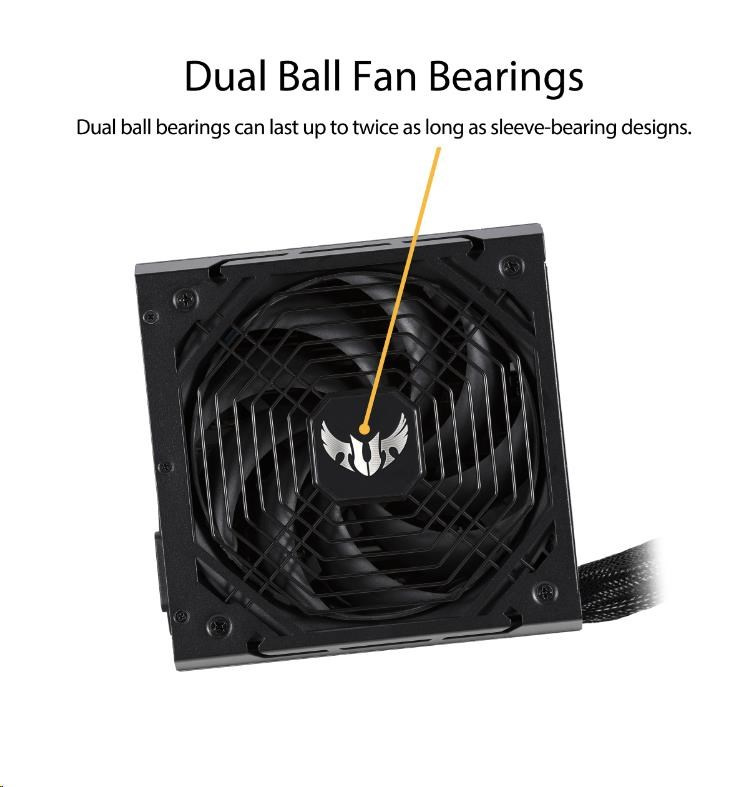

- Dual ball fan bearings can last up to twice as long as sleeve bearing designs.

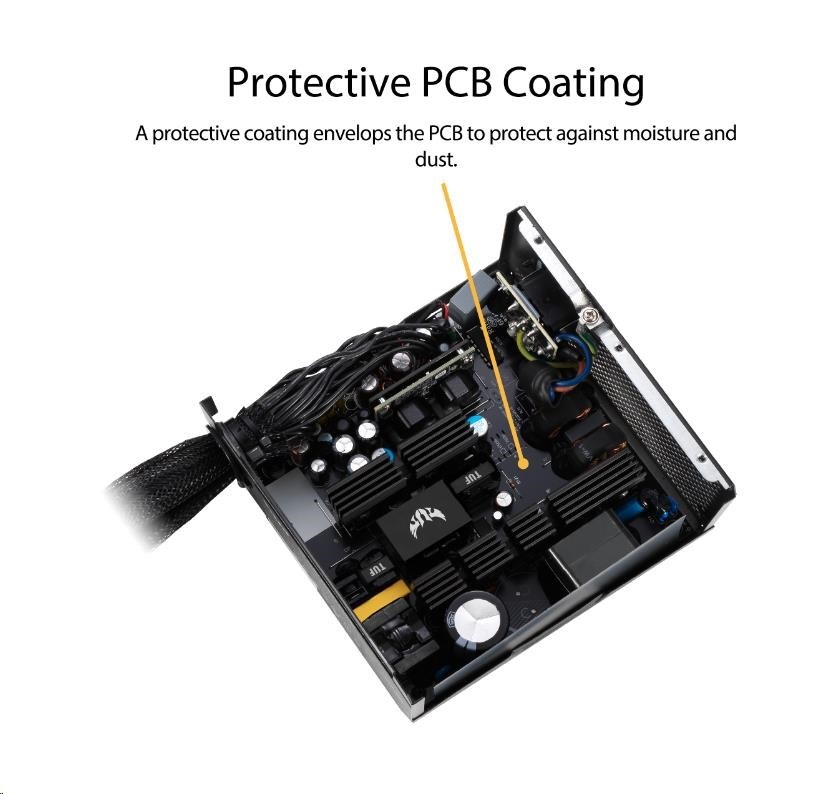

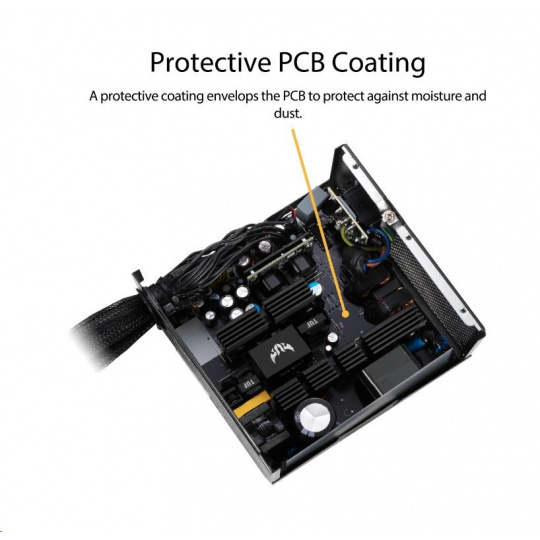

- A protective PCB coating protects against moisture, dust, and extreme temperatures.

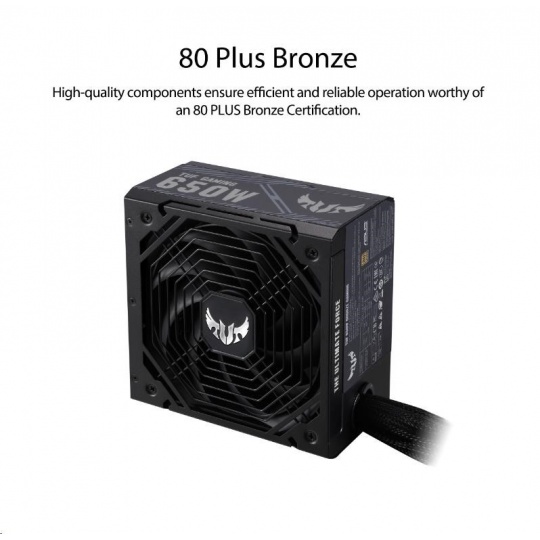

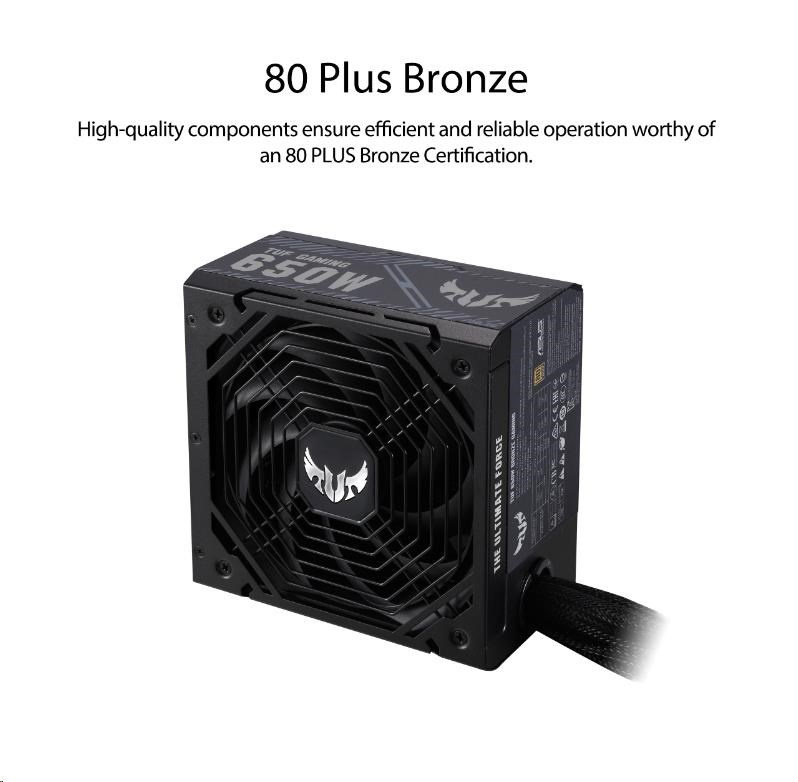

- An 80 Plus Bronze Certification is earned with high-quality components that pass rigorous testing.
- Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
- 0dB technology lets you enjoy light gaming in relative silence.
- Sleeved cables leave your rig looking tactically clean.
- 80cm 8-pin CPU connector (EPS 12V)

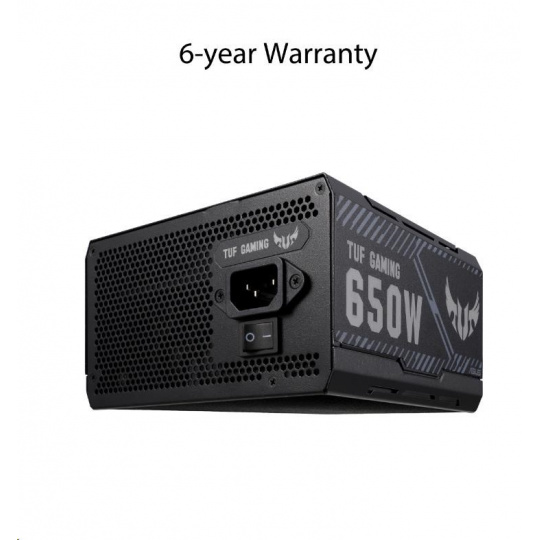

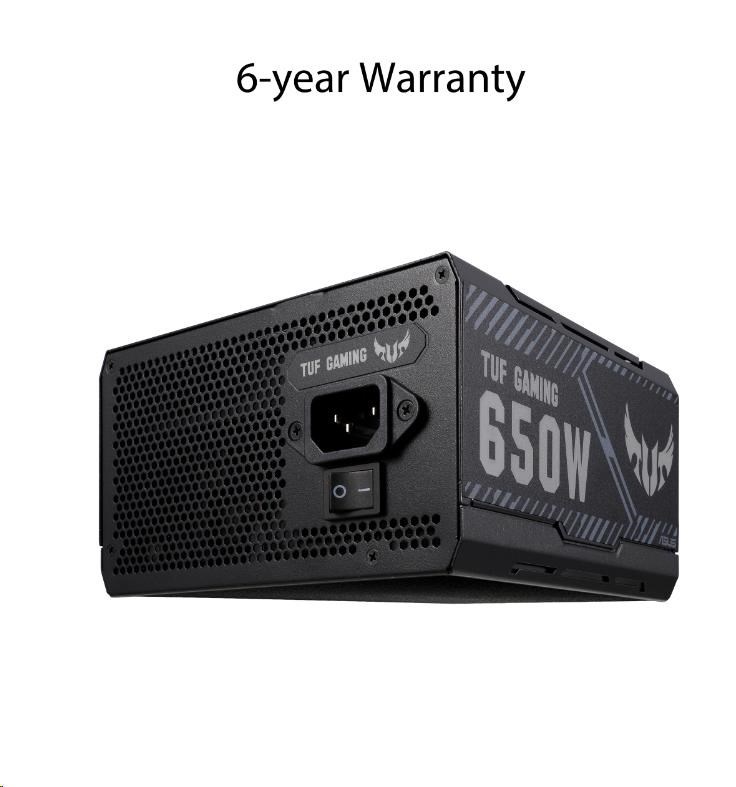

- 6-year warranty included.
TECHNICAL SPECIFICATIONS
| Model name | TUF-GAMING-650B |
| Intel Specification | ATX 12V |
| Efficiency | 80 Plus Bronze |
| Protection Features | OPP/OVP/UVP/SCP/OCP/OTP |
| Hazardous Materials | ROHS |
| Thermal Features | NA |
| AC Input Range | 100-240Vac |
| DC Output Voltage | +3.3V, +5V, +12V, -12V, +5Vsb |
| Maximum Load | 25A, 25A, 51A, 0.8A, 3A |
| Combined Load | 130W, 130W, 612W, 9.6W, 15W |
| Total Output | 650W |
| Connectors | MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 6+2-pin x 4 SATA x 5 Peripheral x 4 |
| Package Contents (Cable + Accessory) | Power Cord x 1 Motherboard Power Cable x 1 CPU Cable 800mm x 2 PCI-E Cable x 2 SATA Cable x 2 Peripheral x 1 TUF Gaming Sticker x 1 |
| Dimension | |
| PSU Size (mm) | 150 x 150 x 86 |
| Color Box (mm) | 290 x 200 x 108 |
| Weight | |
| Single PSU (kg) | 2.06 |
| Product Weight (kg) (with packing) | 2.75 |
.
ParametryPorovnání
Formát zdroje
ATX
Konektory
PCIe 8-pin
Konektory
SATA 15-pin
Konektory pro základní desku
ATX 24-pin
Efektivita zdroje
80 Plus Bronze
Modulární kabeláž
Ne
Výkon zdroje (W)
650
