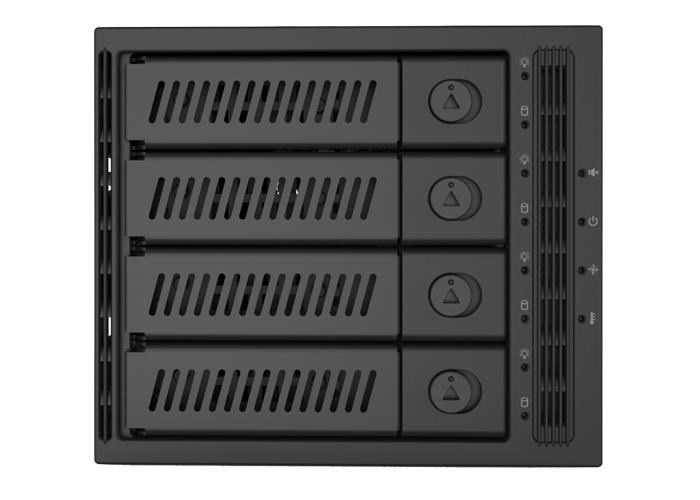

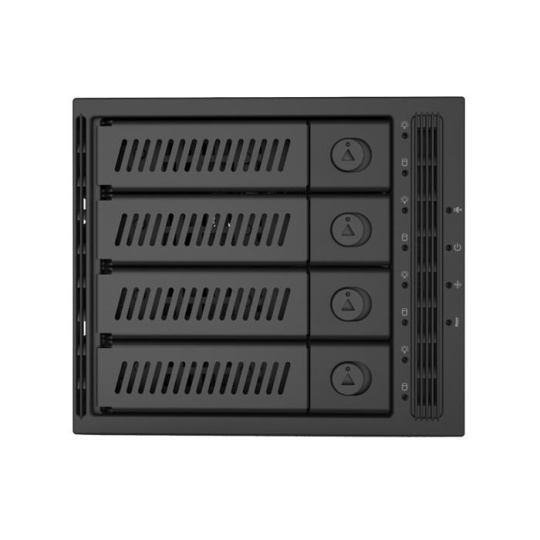

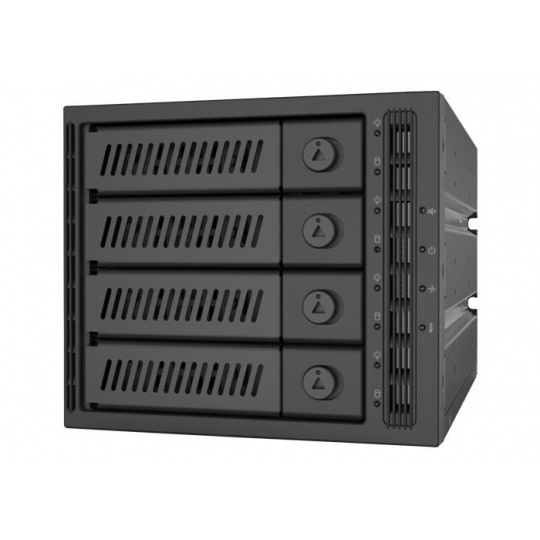

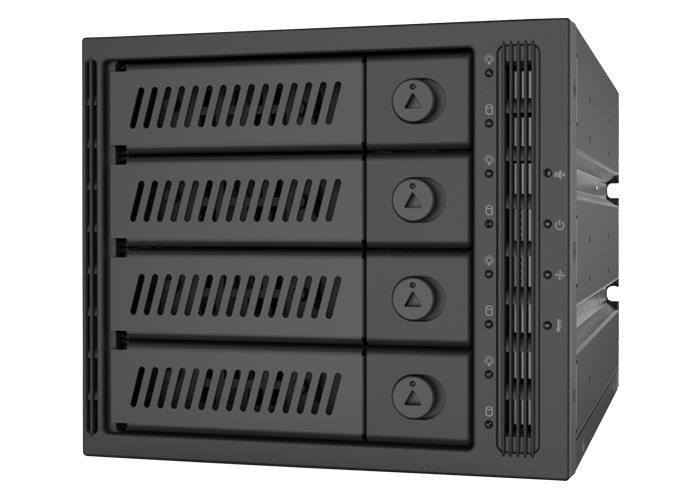

CHIEFTEC SAS/SATA Backplane CMR-3141SAS, 3x 5,25" for 4x 3,5" HDDs/SSDs
Popis a parametry
CHIEFTEC SAS/SATA Backplane CMR-3141SAS, 3x 5,25" for 4x 3,5" HDDs/SSDs

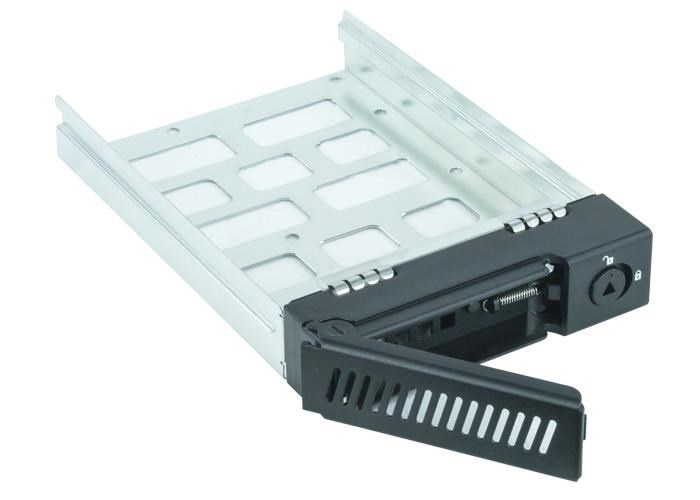

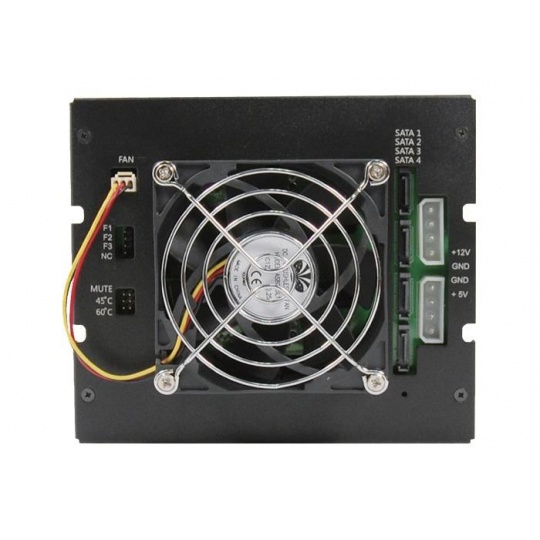

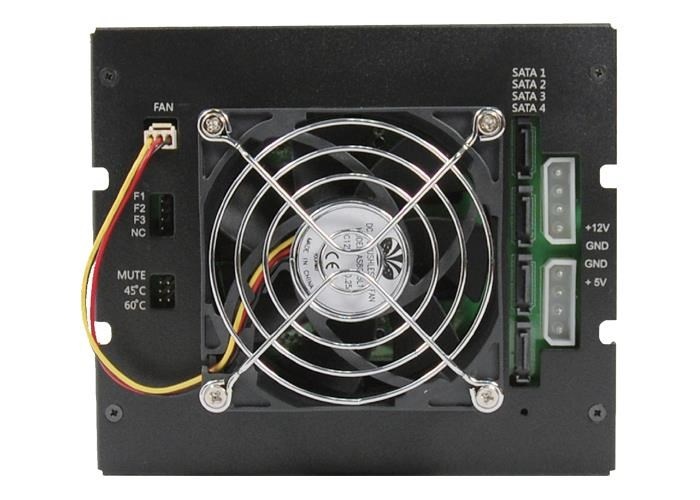

This SAS / SATA Backplanes as well as the detachable bays, are all exclusively designed and made of SECC Steel that they are especially suited to keeping the HDDs/SSDs cool. The Backplane is Plug & Play compatible and supports hot swap. With an 80mm fan, even the fastest HDDs/SSDs are kept cool. The operating status of each HDD/SSD as well as the power and the activity of the fans are shown in the front of the Backplane by LED's.
SPECIFICATIONS:
Features
- Professional Data Backup
- Hot Swap
- Plug & Play compatible
- Lock mechanism with key
- Space saving
Technical Data
| Interface (HDD/SSD): | SATA/SAS I/II/III |
| Dimension (DxWxH): | 217mm x 146mm x 126mm |
| Weight: | 2,407 kg |
| Form Factor: | 3x 5,25" bays for 4x SATA/SAS HDDs/SSDs (3,5"/2,5") |
| Cooling: | 80mm fan |
| Power Connector: | 2x Molex |
| Data Interface (ext.): | 4x SATA |
| Supported Raid-Level: | No Raid controller is included |
| Special Features: |
|
| Scope of delivery: | Backplane, 4x SATA cable, set of screws, User manual (engl.) |
| Warranty: | 24 Month |
