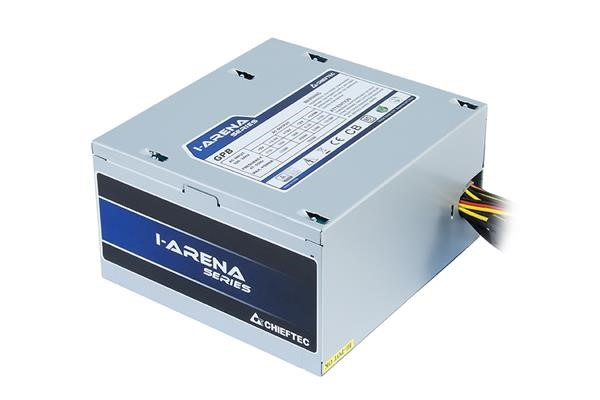

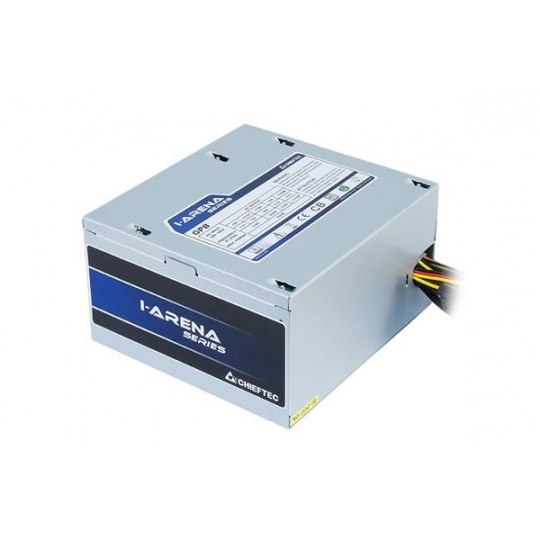

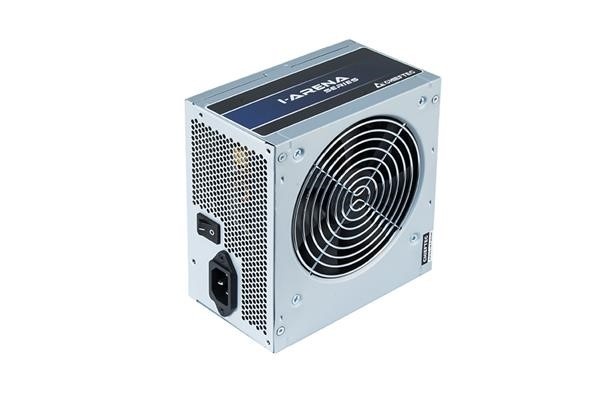

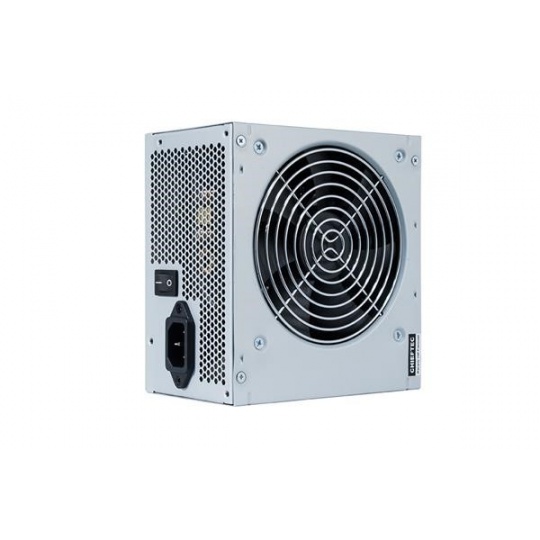

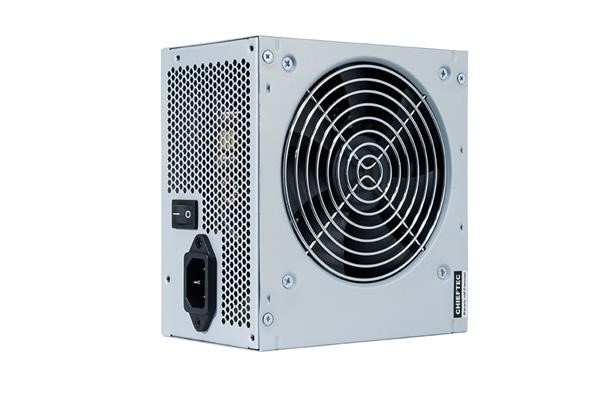

CHIEFTEC zdroj iARENA, GPB-400S, 400W, 120mm fan, PFC, účinnost >85%, bulk
Popis a parametry
CHIEFTEC zdroj iARENA, GPB-400S, 400W, 120mm fan, PFC, účinnost >85%, bulk
GPB-400S
.High efficiency and a highly competitive pricing coupled with the latest “state-of-the-art” PCB design and components distinguish the 6 new power supplies of the iARENA series. Fully aware of environmental requirements, CHIEFTEC offers European PC manufacturers a solution, fixed @230V and with reduced procurement costs thanks to the resource-friendly bulk packaging.
Performance
| AC Input: | 200-240V / 3A |
| Frequency: | 47-63 Hz |
| +5V: | 16A |
| +3,3V: | 17A |
| +5V & +3,3V combined: | 100W |
| +12V 1: | 30A/360W |
| +12V 2: | N/A |
| +12V 1 & +12V 2 combined: | N/A |
| +12V 3: | N/A |
| +12V 4: | N/A |
| +12V 3 & +12V 4 combined: | N/A |
| P.F.: | >0,9 |
| -12V: | 0,3A / 3,6W |
| +5VSB: | 2,5A / 12,5W |
| Maximum Load: | 400W |
Connectors
Native cable:
| 20+4PIN: | |
| ===400mm===[20+4PIN] | |
| SATA: | |
| ===400mm===[Molex]===150mm===[SATA]===150mm===[SATA] | |
| Molex/Sata: | |
| ===400mm===[SATA]===150mm===[Molex]===150mm===[Molex] | |
| Molex/Sata: | |
| ===400mm===[SATA]===150mm===[SATA] | |
| 6+2PIN PCIe: | |
| ===400mm===[6+2PIN PCIe] | |
| 4PIN 12V : | |
| ===400mm===[4PIN 12V] | |
ParametryPorovnání
Formát zdroje
ATX
Konektory
PCIe 8-pin
Konektory
Molex
Konektory
SATA 15-pin
Konektory
FDD
Konektory pro základní desku
ATX 24-pin
Konektory pro základní desku
EPS 8-pin
Efektivita zdroje
85+
Modulární kabeláž
Ne
Výkon zdroje (W)
400
