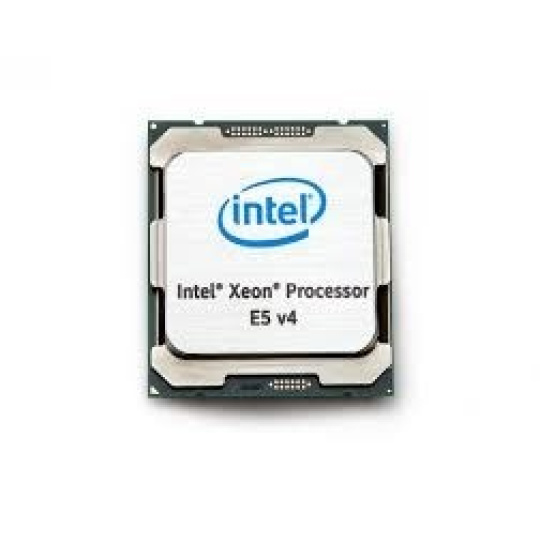

CPU INTEL XEON E5-2699A v4, LGA2011-3, 2.40 Ghz, 55M L3, 22/44, tray (bez chladiče)
Popis a parametry
CPU INTEL XEON E5-2699A v4, LGA2011-3, 2.40 Ghz, 55M L3, 22/44, tray (bez chladiče)
| Code Name | Broadwell |
| Essentials | |
| Vertical Segment | Server |
| Processor Number | E5-2699AV4 |
| Lithography | 14 nm |
| Performance | |
| # of Cores | 22 |
| # of Threads | 44 |
| Processor Base Frequency | 2.40 GHz |
| Max Turbo Frequency | 3.60 GHz |
| Cache | 55 MB |
| Bus Speed | 9.6 GT/s QPI |
| # of QPI Links | 2 |
| TDP | 145 W |
| VID Voltage Range | 0 |
| Supplemental Information | |
| Embedded Options Available | No |
| Memory Specifications | |
| Max Memory Size (dependent on memory type) | 1.54 TB |
| Memory Types | DDR4 1600/1866/2133/2400 |
| Max # of Memory Channels | 4 |
| Max Memory Bandwidth | 76.8 GB/s |
| Physical Address Extensions | 46-bit |
| ECC Memory Supported ‡ | Yes |
| Expansion Options | |
| Scalability | 2S |
| PCI Express Revision | 3.0 |
| PCI Express Configurations ‡ | x4, x8, x16 |
| Max # of PCI Express Lanes | 40 |
| Package Specifications | |
| Sockets Supported | FCLGA2011-3 |
| Max CPU Configuration | 2 |
| Package Size | 45mm x 52.5mm |
| Low Halogen Options Available | See MDDS |
| Advanced Technologies | |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® vPro™ Platform Eligibility ‡ | Yes |
| Intel® Hyper-Threading Technology ‡ | Yes |
| Intel® Virtualization Technology (VT-x) ‡ | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) ‡ | Yes |
| Intel® VT-x with Extended Page Tables (EPT) ‡ | Yes |
| Intel® TSX-NI | Yes |
| Intel® 64 ‡ | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel® AVX2 |
| Idle States | Yes |
| Enhanced Intel SpeedStep® Technology | Yes |
| Intel® Demand Based Switching | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Flex Memory Access | No |
| Intel® Identity Protection Technology ‡ | No |
| Security & Reliability | |
| Intel® AES New Instructions | Yes |
| Secure Key | Yes |
| Intel® OS Guard | Yes |
| Intel® Trusted Execution Technology ‡ | Yes |
| Execute Disable Bit ‡ | Yes |
.
ParametryPorovnání
Řada procesorů
Intel Xeon
Socket (patice)
Socket 2011-3
Druh procesoru
Serverový
Vybavení procesoru
Chladič v balení
Velikost L3 cache
55
