FRACTAL DESIGN skříň Pop Mini Air RGB Black TG Clear Tint, 2x USB 3.0, bez zdroje, mATX
Pop Mini Air
Experience a fusion of style and function with Pop Series. Pop Mini Air melds precision engineering with dynamic design, while saving desk space with its smaller footprint.
- Accommodates mATX / Mini ITX Motherboards

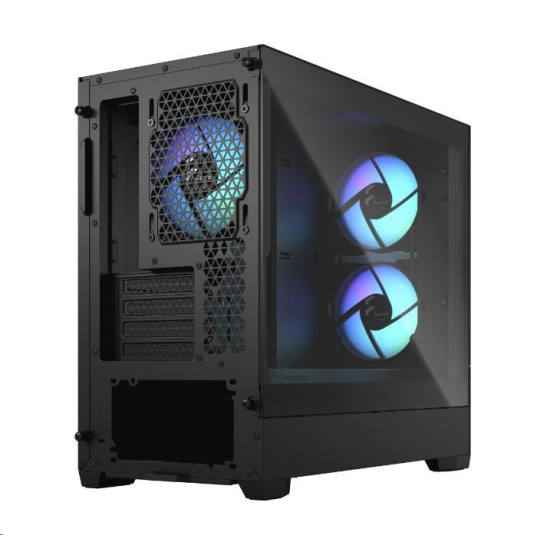

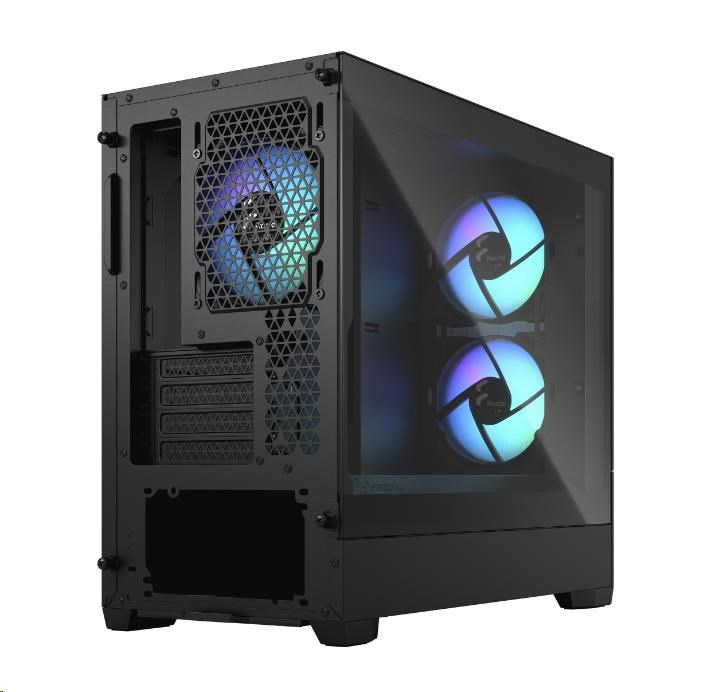

- Easily mounted tempered glass side panel lets you showcase your components
- Up to two HDDs and six SSDs (or one HDD and five SSDs with one optical bay in use)
TECHNICAL SPECIFICATIONS

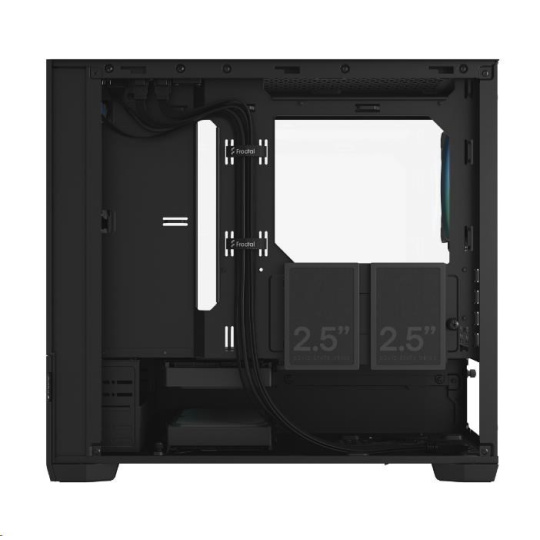

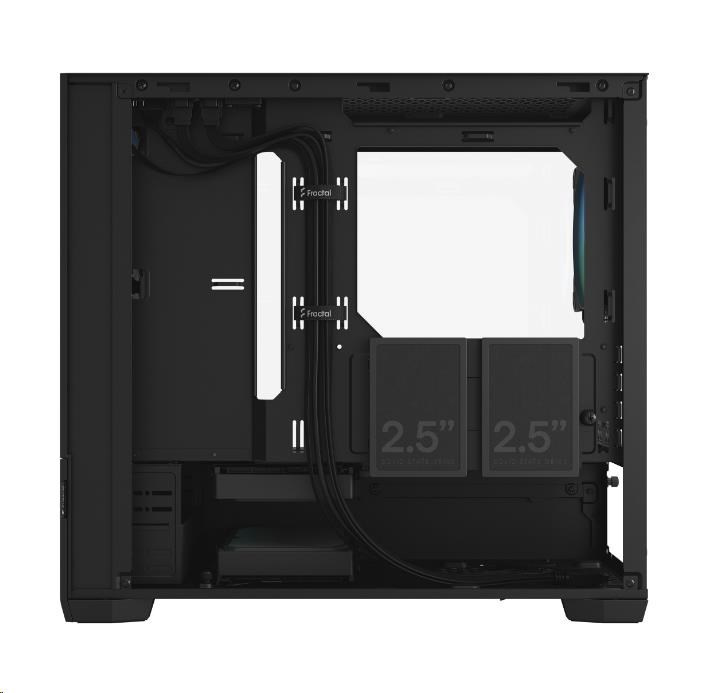

Dedicated 2.5" drive mounts | 4 (2 included) |
Combined 3.5/2.5” drive mounts | 2 (2 included) |
5.25” drive mounts | 2 |
Expansion slots | 4 |

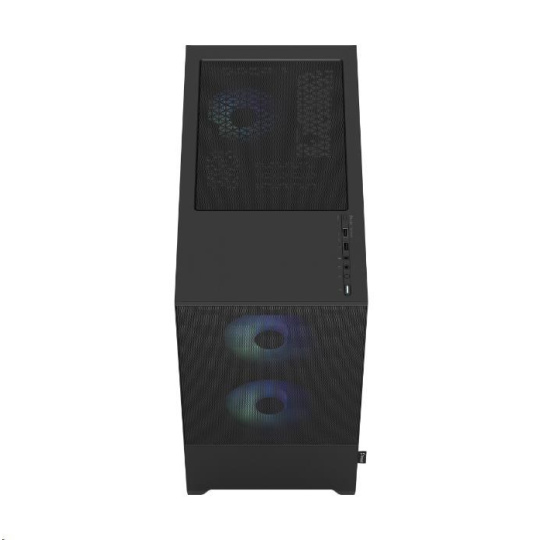

Front interface | 2x USB 3.0*, Audio, RGB controller |
Total fan mounts | 5x 120 mm or 2x 140 mm + 1x 120 mm |

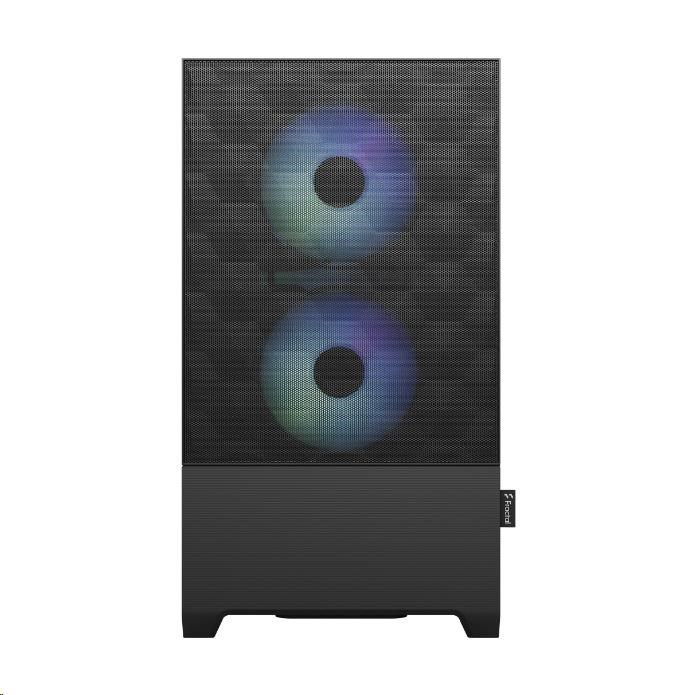

Front fan | 2x 120/ 1x 140 mm (2x Aspect 12 RGB included) |
Top fan | 2x 120/ 1x 140 mm |
Rear fan | 1x 120 mm (1x Aspect 12 RGB included) |
Bottom fan | N/A |
Dust filters | Top (perforated plastic), PSU (nylon), Front (perforated steel) |
Cable routing grommets | No |
Fixed cable ties | Yes, 2 pcs |
Captive thumbscrews | HDD brackets, SSD brackets, Side panels |

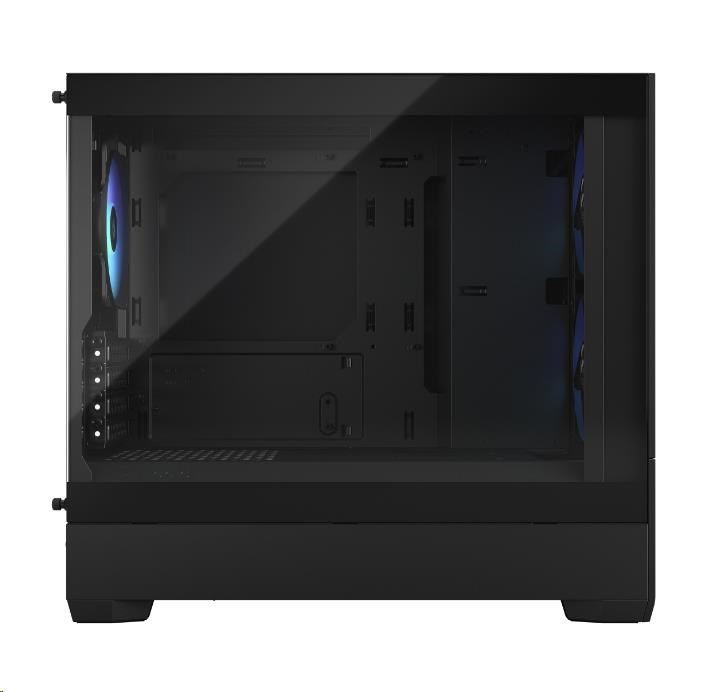

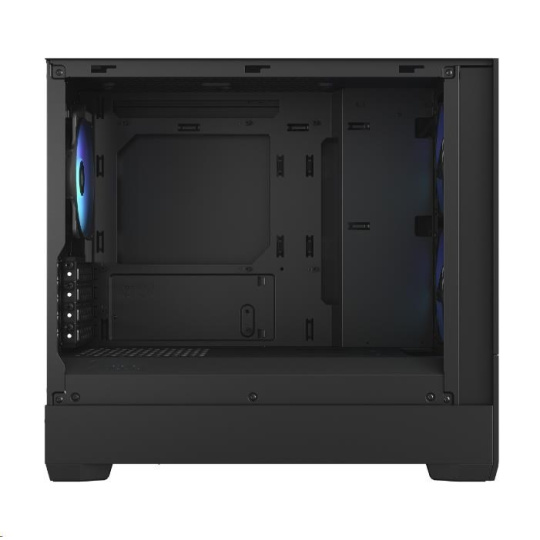

Left side panel | Tempered glass |

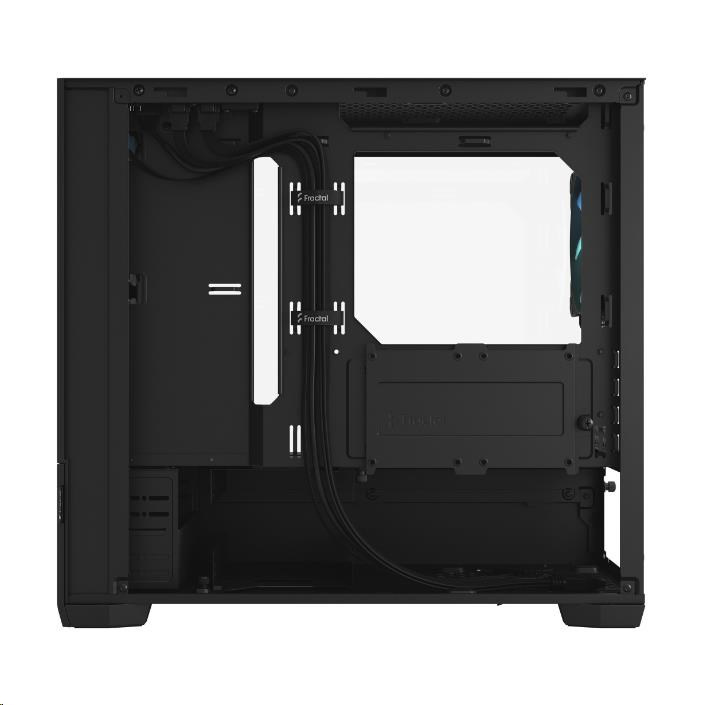

Right side panel | Solid steel |
Compatibility | |
Motherboard compatibility | mATX / Mini ITX |
Power supply type | ATX |
Front radiator | Up to 240 mm |
Top radiator | Up to 240 mm (Up to 46mm RAM height) |
Rear radiator | 1x 120 mm |
Bottom radiator | N/A |
PSU max length | 150 mm |
GPU max length | 365 mm with front fan mounted |
Cable routing space | 19 mm |
CPU cooler max height | 170 mm |
Dimensions | |
Case dimensions (L x W x H) | 432 x 215 x 393 mm |
Net weight | 5.96 kg |
Package dimensions (L x W x H) | 514 x 293 x 470 mm |
Gross weight | 7.24 kg |
.
ParametryPorovnání
Provedení skříně
Mini Tower / micro ATX
Počet pozic 5.25"
2
Počet pozic 3.5" (HDD)
2
Počet pozic 2.5" (SSD)
4
Vybavení PC skříně
Bez integrovaného zdroje
Vybavení PC skříně
Přední USB panel
Vybavení PC skříně
Přední Audio panel
Bočnice
Prosklená
