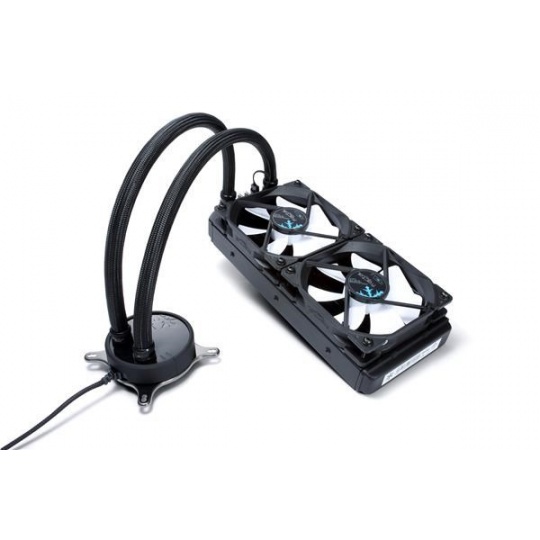

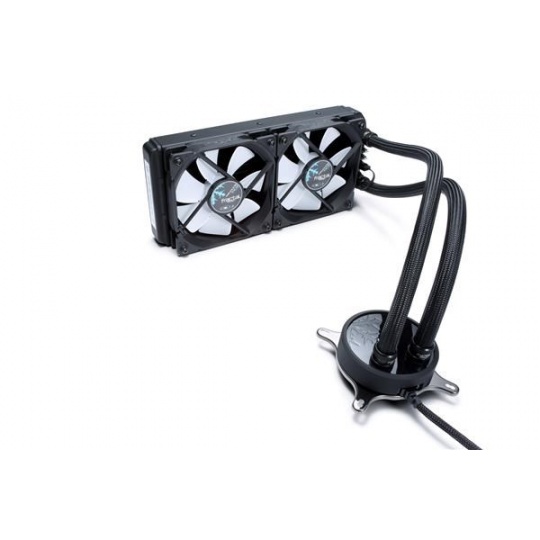

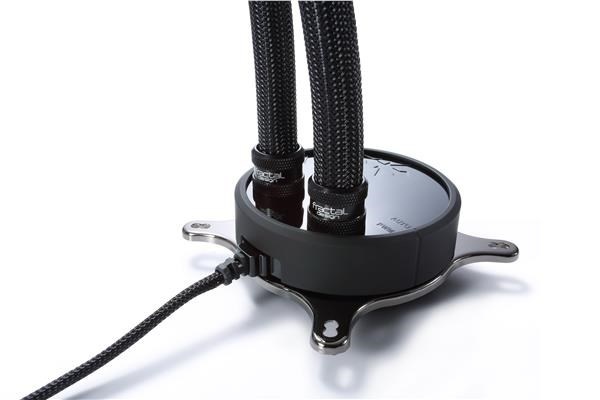

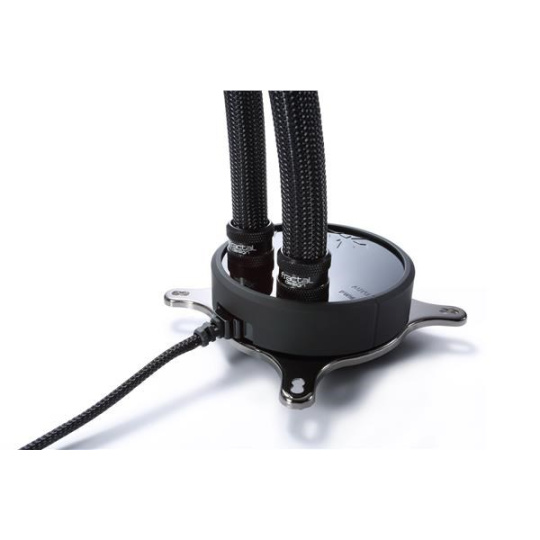

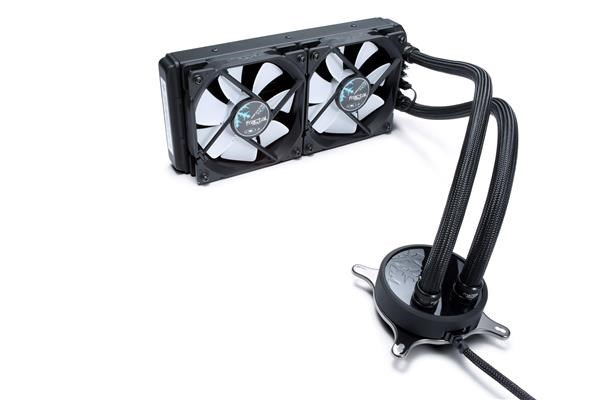

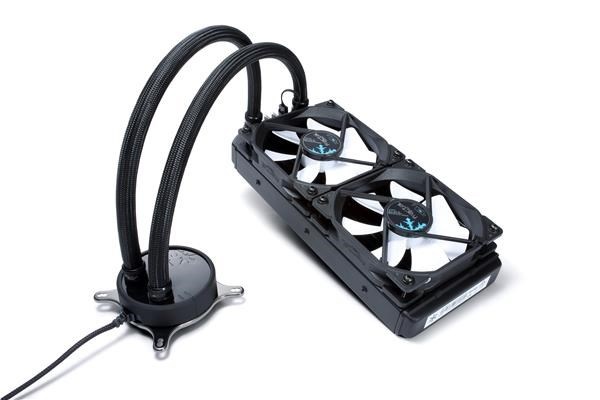

FRACTAL DESIGN vodní chlazení Celsius S24
FRACTAL DESIGN vodní chlazení Celsius S24
The Celsius series builds upon proven technology with cutting edge advancements and premium sound dampening materials to deliver extreme cooling performance with minimum noise output.
Smart dual mode speed controls are both simple and robust with no need for additional software. Both fan and pump speeds can be managed by an intelligent auto mode or switched to PWM mode for precise user control.
For true enthusiasts, the satisfaction of a clean and efficient build can never be overstated, and the Celsius makes this easier than ever with an integrated fan hub and concealed cable routing.
Key features:
The Celsius series uses a combination of cutting edge technology and premium sound dampening materials to deliver extreme cooling performance with minimum noise output. An intelligent temperature-controlled auto mode adjusts fan and pump speeds in real-time for optimum balance of cooling performance and silence, while PWM mode enables precision manual tuning for any usage situation. Included Fractal Design Dynamic X2 PWM fans offer a wide speed adjustment range from 500 to 2000 RPM allowing for near silent operation under lighter loads and maximum airflow during heavy usage. An integrated fan hub with concealed cable routing simplifies cable management for a clean installation. Radiator fittings use standard G 1/4" thread for maximum compatibility and expandability with standard do-it-yourself components. Easily add and integrate a GPU block of your choice to eliminate noisy graphics card fans so the only sound you hear is the sound of your game.
| General Specification | |
| Coldplate technology | Fifth generation |
| Coldplate material | Copper |
| Additional sound dampening | Integrated |
| Thermal paste | Pre-applied, high thermal conductivity |
| Sockets supported (Intel) | 1150, 1151, 1155, 1156, 1366, 2011, 2011-v3 |
| Sockets supported (AMD) | AM2, AM2+, AM3, AM3+, AM4, FM1, FM2, FM2+ |
| Tube length | 400 mm |
| Tube material | Sleeved low-permability rubber tubes |
| Fittings, block side | Durable metal fittings, non-removable |
| Fittings, radiator side | Durable metal fittings, G 1/4" thread |
| Thermal paste | Pre-applied, high thermal conductivity |
| Fan control | Integrated dual mode |
| Warranty | 5-year (Upon Expansion of the Celsius unit, only individual components of the Fractal Design Celisus S24 or S36 are covered) |
| Fan specification | |
| Fan type | Fractal Design Dynamic X2 GP-12 PWM |
| Rotational speed | 500-2000 RPM |
| Bearing | LLS bearing |
| PWM control | Yes |
| Acoustical noise (full speed) | 32.2 dB(A) |
| Maximum air flow | 148.8 m3/h | 87.6 CFM |
| Maximum static pressure | 2.30 mm H2O |
| Input voltage | 12 V DC |
| Maximum input current | 0.2A |
| MTBF | >100,000 |
| Pump specification | |
| Rotational speed | 1950-3150 RPM |
| Bearing type | Ceramic bearing and shaft |
| PWM control | Yes |
| Acoustical noise (full speed) | 20,0 dB(A) |
| Maximum pressure, 50°C | 1m H2O | 1.45 PSI |
| Input voltage | 12 V DC |
| Input current (without fans) | 0.15 A |
| Rated input power (with fans) | 6.6W |
| MTTF | >50,000 hours |
| Radiator specification | |
| Dimensions | 284*122*31 mm |
| Housing material | Aluminium |
| Fin material | Aluminium |
| Port threads | G 1/4" |
| Fan screw threads | UNC 6-32 |
Package contents
Celsius S24 system
2 pcs Dynamic X2 GP-12 PWM fans
Multilingual user manual
Mounting hardware for all listed sockets
Fan and radiator mounting screws
Additional information
EAN: 7350041084457
UPC: 817301014458
Product code: FD-WCU-CELSIUS-S24-BK
.
