GIGABYTE MB Sc AM4 A520M DS3H V2, AMD A520, 4xDDR4, 1xHDMI, 1xDP, mATX

Formát základní desky:micro ATX; Chipset:AMD A520; Socket (patice):Socket AM4; Pro procesory:AMD; Technologie paměti RAM:DDR4; Počet paměťových slotů:4; M.2 slot:1; SATA 3:4; Podpora RAID:0, 1, 10; PCI Express x16:1; PCI Express x8:0; PCI Express x1:1; PCI:0; LAN:1Gbit/s; Bezdrátové připojení:bez; DisplayPort:1; HDMI:1; VGA:0; DVI:0; DisplayPort Type-C:0.... více
Běžná cena: 1 931  (-9%)
1 450.41 Kč bez DPH
Na dotaz
1 755 Kč
ks
Vyberte si zvýhodněné balení
Množstevní slevy
Kód: 524858
Kód dod.: A520M DS3H V2
EAN: 4719331854690
Záruka: 36 Měsíc(ů)
Výrobce: Gigabyte
Popis a parametry

GIGABYTE MB Sc AM4 A520M DS3H V2, AMD A520, 4xDDR4, 1xHDMI, 1xDP, mATX

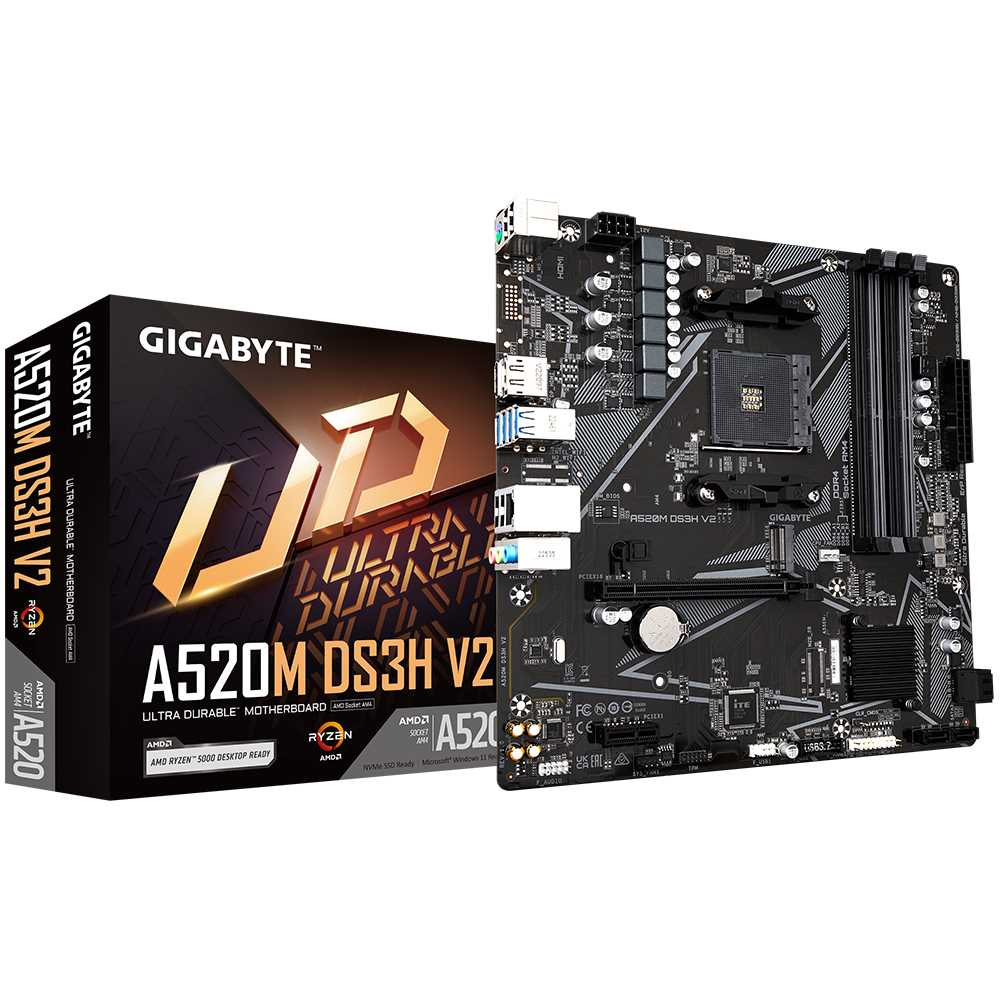

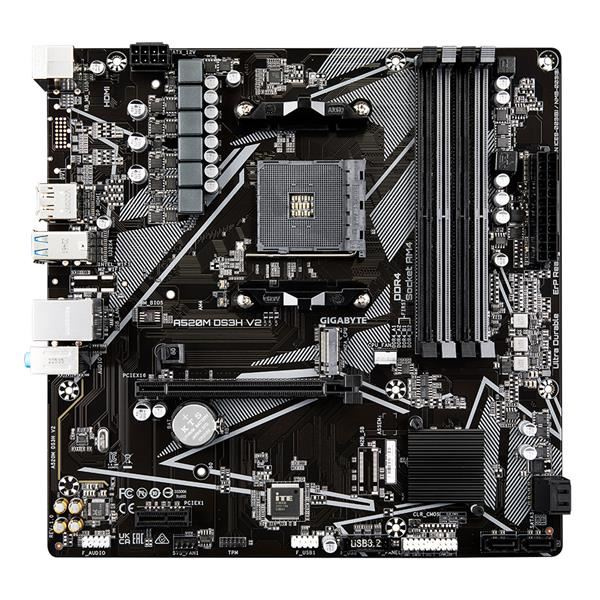

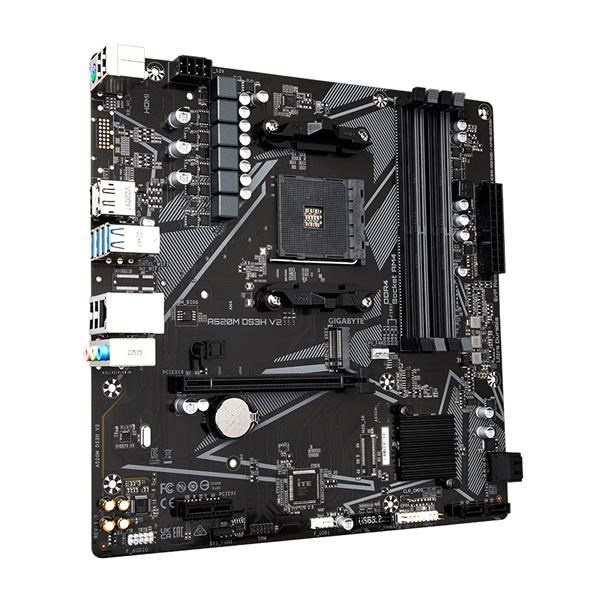

GIGABYTE A520M DS3H V2

  • Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
  • Ultra Durable™ PCIe 3.0 x16 Slot
  • NVMe PCIe 3.0 M.2 Connectors
  • High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
  • GbE LAN with Bandwidth Management
  • Rear DisplayPort and HDMI for Multi-display Support
  • Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Anti-Sulfur Resistors Design


CPU

AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors



Chipset

AMD A520



Memory

4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules



Graphics

1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Maximum shared memory of 16 GB



Expansion Slots

1 x PCI Express x16 slot, integrated in the CPU:
Supporting PCIe 3.0 x16 mode
1 x PCI Express x1 slot, integrated in the Chipset:
Supporting PCIe 3.0 x1 mode



Storage

1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
Supporting SATA and PCIe 3.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors, integrated in the Chipset:
Supporting for RAID 0, RAID 1, and RAID 10



Ethernet

Realtek® GbE LAN chip (1 Gbps/100 Mbps)



USB

CPU:
4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
2 x USB 3.2 Gen 1 ports available through the internal USB header
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)



Audio

Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

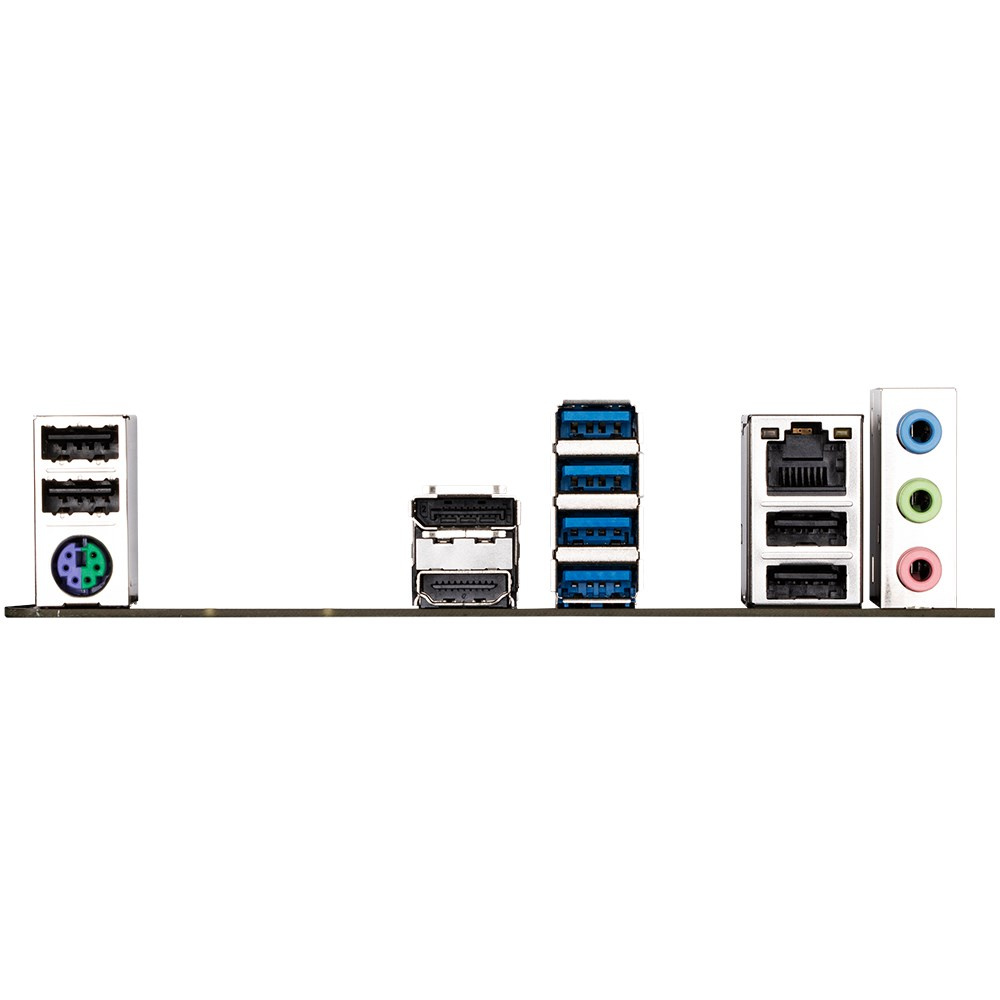

Back Panel I/O Ports

1 x PS/2 keyboard/mouse port
1 x DisplayPort
1 x HDMI port
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks



Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper



I/O Controller

iTE® I/O Controller Chip



H/W Monitoring

Voltage detection
Temperature detection
Fan speed detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.



BIOS

1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0



Unique Features

Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install



Bundled Software

Norton® Internet Security (OEM version)
LAN bandwidth management software



Operating System

Support for Windows 11 64-bit
Support for Windows 10 64-bit



Form Factor

Micro ATX Form Factor; 24.4cm x 24.4cm


.
ParametryPorovnání
Technologie paměti RAM
DDR4
Socket (patice)
Socket AM4
Chipset
AMD A520
PCI Express x16
1
Podpora RAID
0
Podpora RAID
1
Podpora RAID
10
COM port
Ne
LPT port
Ne
Formát základní desky
micro ATX
3.5mm Jack
Ano
Bezdrátové připojení
bez
Pro procesory
AMD
Počet paměťových slotů
4
DisplayPort
1
TPM
Ano
USB 2
6
USB 3
6
PCI
0
M.2 slot
1
SATA 3
4
VGA
0
DVI
0
HDMI
1
Led Header
Ne
PCI Express x1
1
USB C
0
LAN
1Gbit/s
DisplayPort Type-C
0
Počet Thunderbolt
0
PCI Express x8
0
