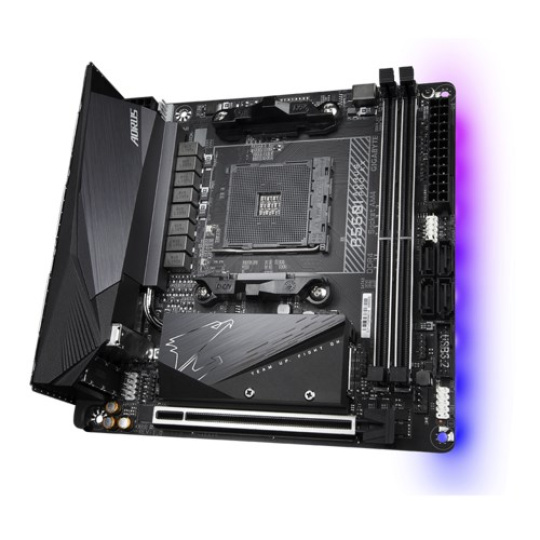

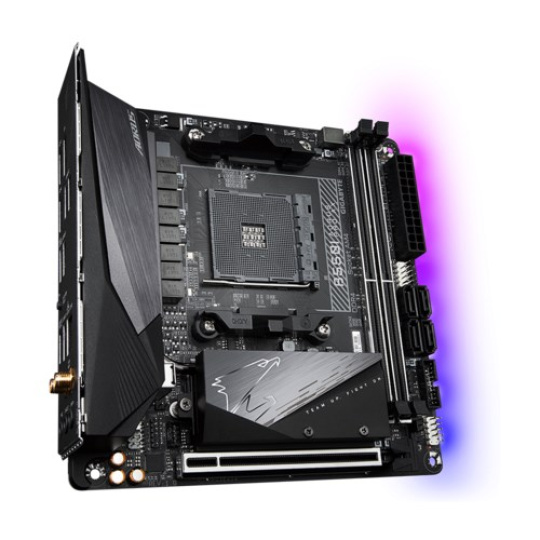

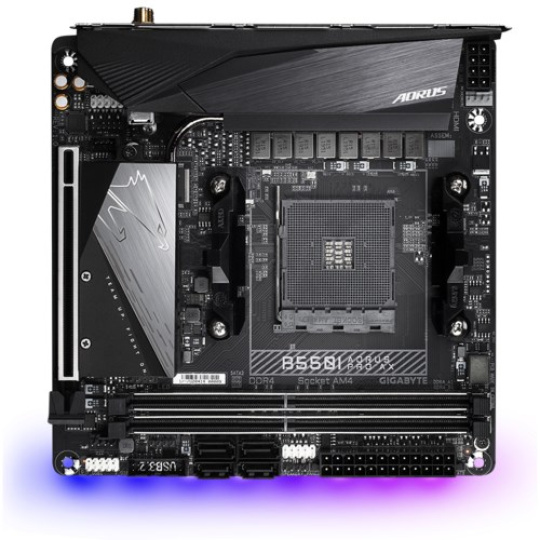

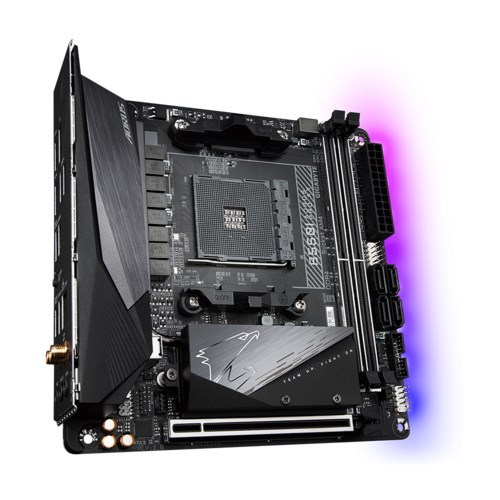

GIGABYTE MB Sc AM4 B550 I AORUS PRO AX, AMD B550, 2xDDR4, 1xDP, 2xHDMI, WI-FI, mITX

Name: GIGABYTE MB Sc AM4 B550 I AORUS PRO AX, AMD B550, 2xDDR4, 1xDP, 2xHDMI, WI-FI, mITX
Brand: Gigabyte
SKU: 524059
Price: 4092 CZK
Availability: OutOfStock

-9%

Kód: 524059

Kód dod.: B550I AORUS PRO AX

EAN: 4719331809508

Záruka: 36 Měsíc(ů)

Výrobce: Gigabyte

Do oblíbených Porovnání Dotaz prodejci Hlídání

Popis a parametry

GIGABYTE MB Sc AM4 B550 I AORUS PRO AX, AMD B550, 2xDDR4, 1xDP, 2xHDMI, WI-FI, mITX

ParametryPorovnání

Technologie paměti RAM

DDR4

Socket (patice)

Socket AM4

Chipset

AMD

Chipset

AMD B550

PCI Express x16

Podpora RAID

COM port

LPT port

Formát základní desky

Mini-ITX

3.5mm Jack

Ano

Bezdrátové připojení

WiFi + Bluetooth

Pro procesory

AMD

Počet paměťových slotů

DisplayPort

TPM

Ano

USB 2

USB 3

M.2 slot

SATA 3

HDMI

Led Header

Ano

USB C

LAN

2.5Gbit/s

GIGABYTE MB Sc AM4 B550 I AORUS PRO AX, AMD B550, 2xDDR4, 1xDP, 2xHDMI, WI-FI, mITX

CPU	AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors (Please refer "CPU Support List" for more information.)
Chipset	AMD B550
Memory	2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Support for DDR4 5300(O.C.) / 5200(O.C.) / 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.)
Audio	Realtek® ALC1220-VB codec * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Wireless Communication module	AMD Wi-Fi 6E RZ608 (MT7921K) WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment.
Expansion Slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 5000 Series* and Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support PCIe 3.0 x16 mode
Onboard Graphics	Integrated in the New Generation AMD Ryzen™ with Radeon™ Graphics processors: 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. 2 x HDMI ports, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. Support for up to 3 displays at the same time Maximum shared memory of 16 GB
Storage Interface	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2260/2280 SSDs: - AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs - AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB) on the back of the motherboard, integrated in the Chipset, supporting Socket 3, M key, type 2260/2280 SSDs: - Supporting SATA and PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset: - Support for RAID 0, RAID 1, and RAID 10
USB	CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 2 x USB 2.0/1.1 ports available through the internal USB header
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper

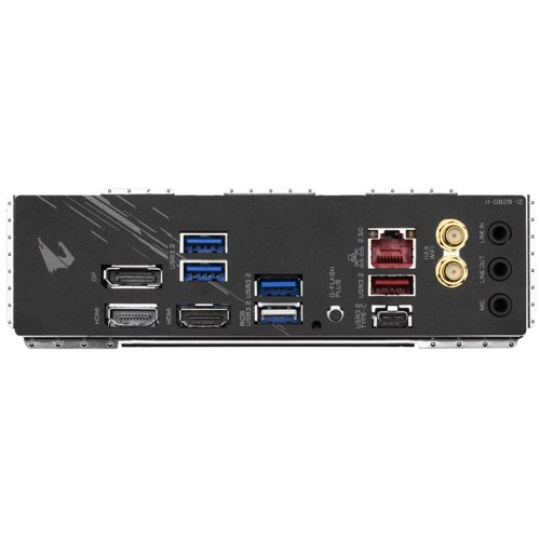

Back Panel Connectors	1 x DisplayPort 2 x HDMI ports 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 1 x Q-Flash Plus button 1 x RJ-45 port 2 x SMA antenna connectors (2T2R) 3 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Bundled Software	Norton® Internet Security (OEM version) XSplit Gamecaster + Broadcaster (12 months license) Realtek® 8125 Gaming LAN Bandwidth Control Utility
Operating System	Support for Windows 11 64-bitt Support for Windows 10 64-bit
Form Factor	Mini-ITX Form Factor; 17.0cm x 17.0cm
Remark	Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
