HP Integrated Remote System Controller
Popis a parametry
HP Integrated Remote System Controller
HP Integrated Remote System Controller
Parametry
| Název produktu | HP Integrated Remote System Controller |
|---|---|
| Produktové číslo | 7K6D9AA |
| Hardwarová kompatibilita | Compatible with the Engage Flex Pro G2, Engage Flex Pro-C G2, Z2 Small Form Factor G9, Z2 Tower G9 Z2 Small Form Factor G1i, Z2 Tower G1i, Z4 Rack G5, and Z4/Z6/Z6A/Z8 G5 platforms. When using the HP Integrated Remote System Controller with the ZCentral 4R and Z4/Z6/Z8 G4 platforms, the HP Z4/Z6/Z8 G4/ZCentral 4R Remote System Controller Cable Adapter(7K6E5AA) is required to supply auxiliary power to the HP Integrated Remote System Controller, as well as power control, and host power status. Not compatible with Z2 Mini G9 due to size. |
| Poznámka k prohlášení o kompatibilitě | An external version of this product is available called HP Remote System Controller (7K6D7AA). The latest BIOS update is required so the host provides power to the HP Integrated Remote System Controller in all host power states. By installing the HP Z4/Z6/Z8 G4/ZCentral 4R Remote System Controller Cable Adapter, power will be stolen from the front USB ports on the host. This was necessary to be able to power the Remote System Controllers in all power states, and it leaves the front USB ports unpowered and unusable. |
| Přehled | This remote out-of-band management solution gives you the power to monitor and manage a workstation fleet without compromising control, all from a single interface. Quick-to-deploy, scalable, and with strong security— now you can provide support and maintenance from anywhere.[1] |
| Rozměry (šířka × hloubka × výška) | 112 x 72 x 20 mm <br />HP Anyware Integrated Remote System Controller only; not including PCIe Bracket or cables |
| Hmotnost | 0.27 lb Weight does not include cables, half-height bracket, or packaging, and is only the HP Anyware Integrated Remote System Controller with the full-height PCIe bracket installed by default. |
| Záruka | Standardní jednoletá omezená záruka HP |

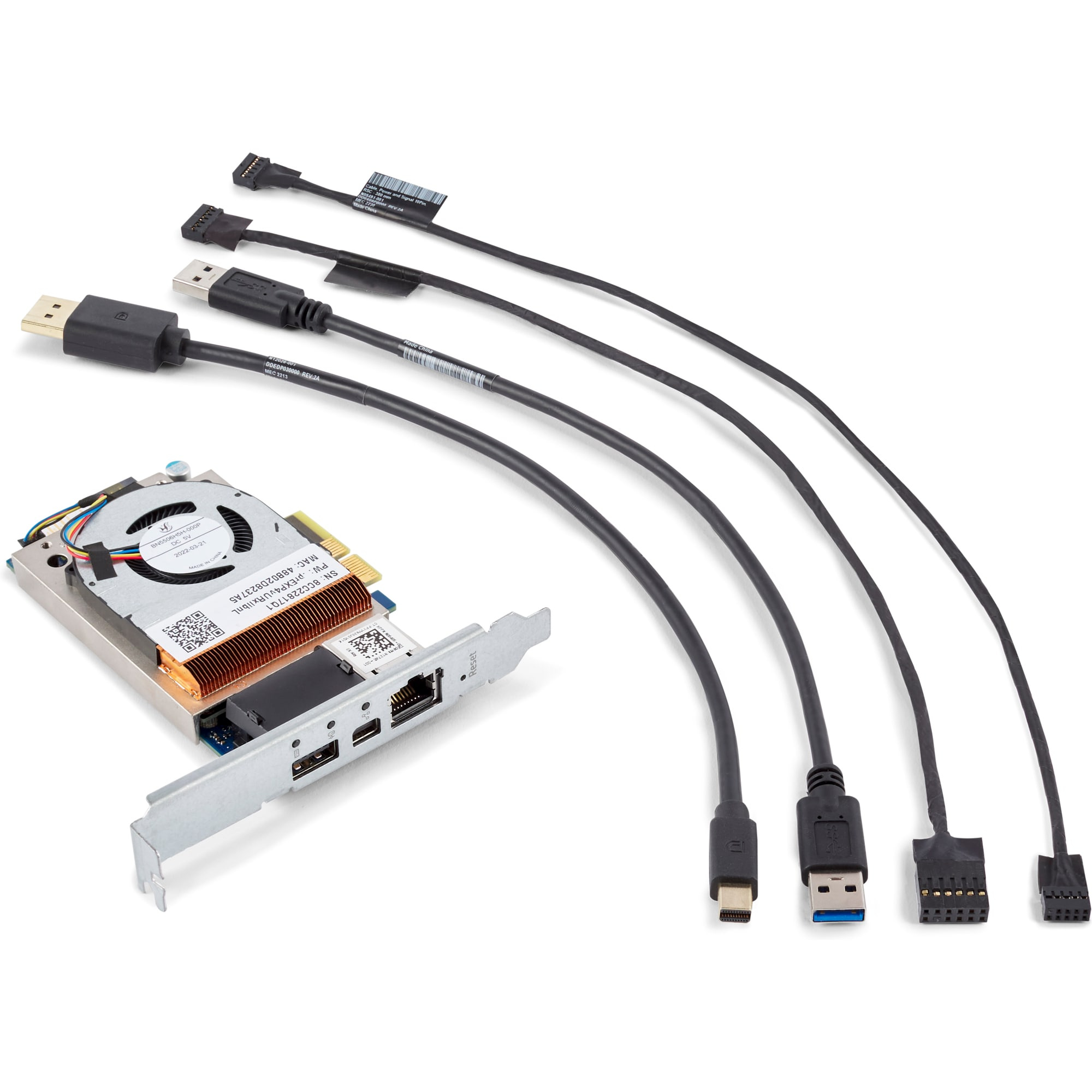

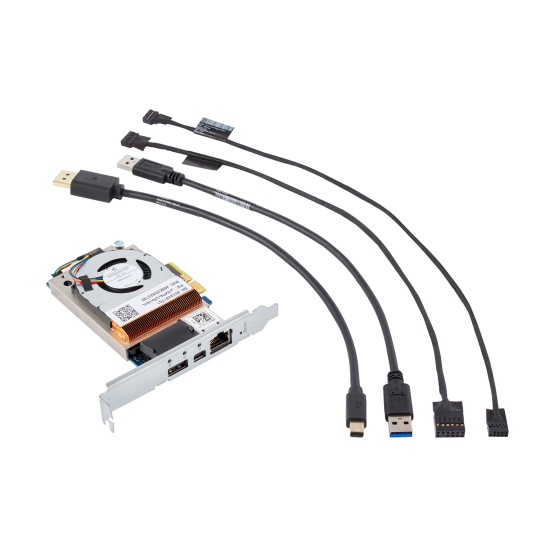

| Obsah balení | HP Integrated Remote System Controller with PCIe Half-Height Bracket; DisplayPort™ to Mini DisplayPort™ cable; RSC Power and Signal; Main Board Adapter cable (380 mm); Internal USB3 cable; 1 external USB Type-A to type-A cable; Quick Start Guide |
| Poznámka pod čarou [01] | [1] Je zapotřebí přístup k Internetu. |
| Poznámka pod čarou [02] | [2] Internet access required. Automation of tasks available with select Z desktop workstations. |
| Poznámka pod čarou [03] | [3] Internet access required. Fleet management requires HP Remote System Management. |
| Poznámka pod čarou [04] | [4] HP Integrated Remote System Controller not compatible with Z2 Mini platforms and not recommended for non-Z devices. |
| Poznámka pod čarou [05] | [5] HP service and support not available for non-Z devices. |
| Právní omezení | Skutečný vzhled produktu nemusí být stejný jako na obrázku. |
| Právní omezení [01] | [6] Full suite of hardware alerts available with select Z desktop workstations. |
| Právní omezení [02] | [7] HP Remote System Management required to view consolidated reports from all devices paired with HP Remote System Controller or HP Integrated Remote System Controller. |
| Právní omezení [03] | [8] Viewing system information is only available when paired with select Z desktop workstations. |
| Právní omezení [04] | [9] HP Integrated Remote System Controller not compatible with Z2 Mini platforms and not recommended for non-Z devices. |
| Právní omezení [05] | [10] Based on HP’s unique and comprehensive security capabilities at no additional cost among desktop workstation vendors as of January 2017 on HP Desktop Workstations with 7th Gen and higher Intel® Processors. |
| Právní omezení [06] | [11] Remote Power Control feature only available when HP Remote System Controller or HP Integrated Remote System Controller is paired with select Z desktop workstations. |
