Manhattan rozbočovač, MST hub, DisplayPort na Dual DisplayPort (M/F), 4K@30Hz, černá

Druh IO zařízení:MST hub; Provedení:Externí.... více
Běžná cena: 1 547  (-6%)
1 195.87 Kč bez DPH
Na dotaz
1 447 Kč
ks
Vyberte si zvýhodněné balení
Množstevní slevy
Kód: 254974
Kód dod.: 207768
EAN: 766623207768
Záruka: 24 Měsíc(ů)
Výrobce: Manhattan
Popis a parametry

Manhattan rozbočovač, MST hub, DisplayPort na Dual DisplayPort (M/F), 4K@30Hz, černá

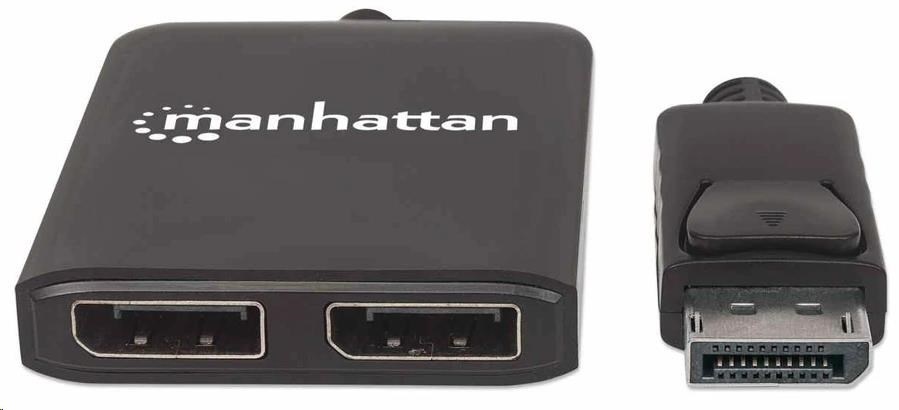

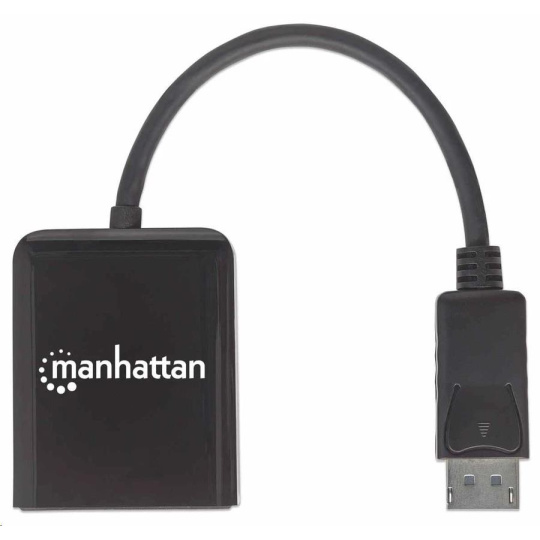

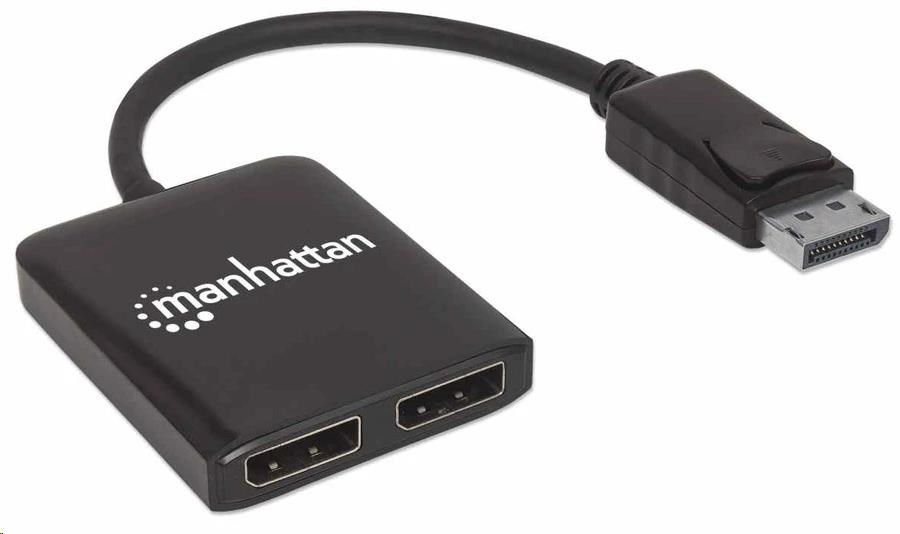

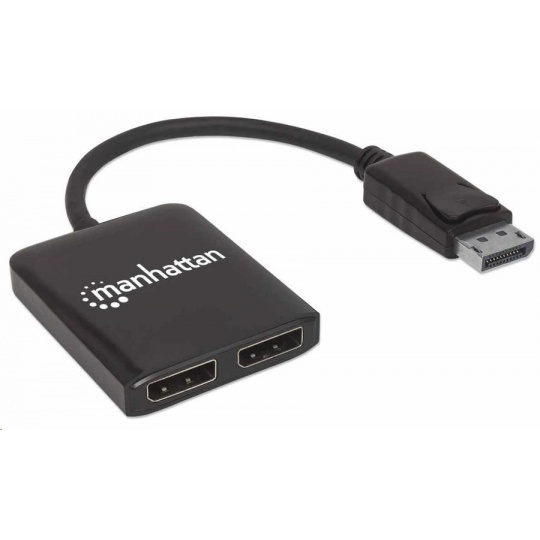

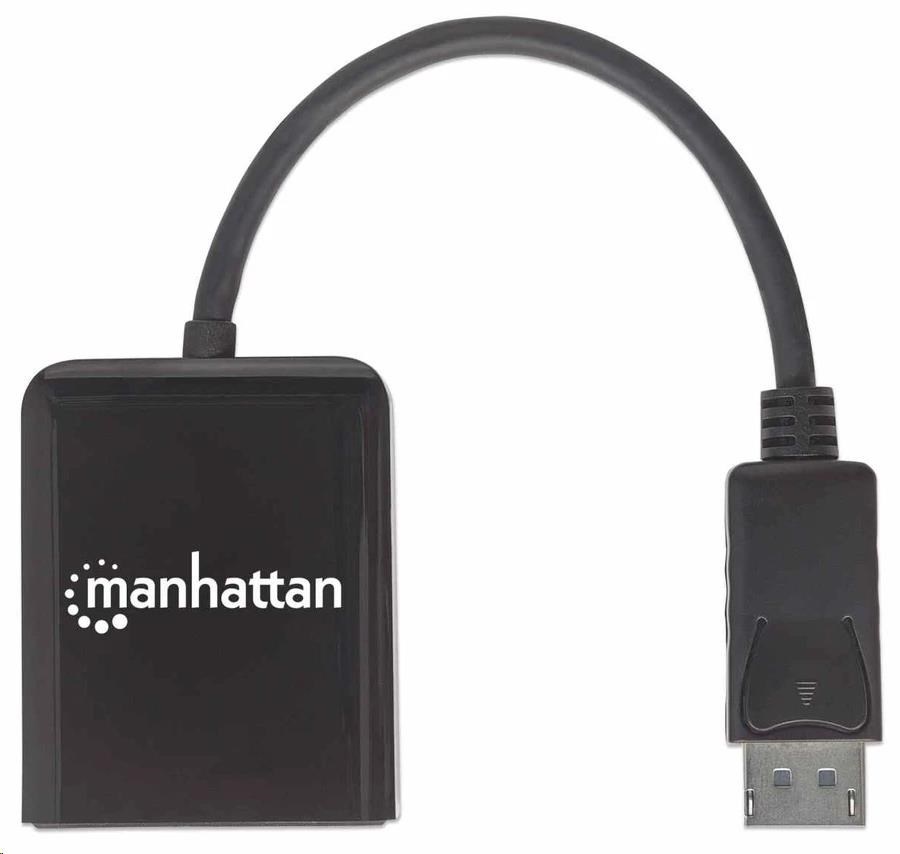

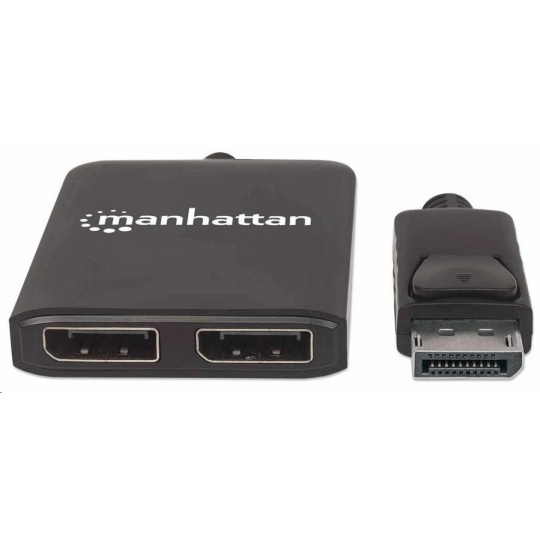

DisplayPort to Dual DisplayPort - MST Hub

Easily distribute a single Ultra-High-Definition (UHD) signal to multiple displays.
The Manhattan DisplayPort to Dual DisplayPort - MST Hub streams a 4K DisplayPort (DP) signal from a single UHD source to up to two UHD displays.
Flexible Solution for Many A/V Applications
Ideal for trade shows, classrooms, video conferencing, presentations and retail applications, the Manhattan DisplayPort to Dual DisplayPort - MST Hub features a built-in booster for added signal strength. It’s a great choice for splitting and distributing a synchronous signal, in either mirrored or extended modes, to multiple 4K DP displays. MST mode creates a video wall from two displays giving the user a more immersive experience while gaming, in a conference setting or in a home office.
Quality Construction and Easy Installation
Full compliance with DisplayPort, HDCP 2.2 and DVI 1.0 ensures that the Manhattan DisplayPort to Dual DisplayPort - MST Hub can provide long service and reliable performance. Quickly connect DP cables (not included) and the included USB power cable, and this affordable, Ultra-High-Definition 4K DisplayPort solution is complete — no software/hardware configuration or complicated settings required.

  • Duplicates an Ultra-High-Definition (UHD) DisplayPort signal for up to two UHD DisplayPort displays
  • 4K@30Hz resolution, full 3D video and Deep Color
  • Supports compressed DTS Master Audio, as well as 7.1 surround sound audio up to 192 kHz
  • Supports Mirror, Extended and Mutli-Stream Transport (MST) modes to maximize work or gaming capabilities
  • Mirror mode duplicates the computer screen onto two displays with resolutions up to 4K@30Hz
  • Extended mode expands the desktop workspace to up to two additional screens with resolutions up to 4K@30Hz
  • Multi-Stream Transport (MST) mode creates a video wall for a more immersive experience, using two screens — with resolutions up to 3840x2160 at 30Hz — as one; requires a graphics card that supports video-wall function
  • USB powered with Plug and Play installation; no special setup or remote required
  • Integrated DisplayPort cable
  • Ideal for enhancing display capabilities or creating a video wall in schools, churches, conference rooms, trade shows and retail outlets; perfect for digital signage and AMD Eyefinity Technology in gaming
  • HDCP 2.2 compliant
  • Gold-plated contacts for corrosion-free connections
  • Three-Year Warranty

TECHNICAL SPECIFICATIONS

Standards and Certifications DP 1.2
HDCP 2.2
DVI 1.0
CTS 1.4a
CE
FCC
RoHS2
System Requirements Windows XP/Vista/7/8.1/10
DP 1.2 graphics card

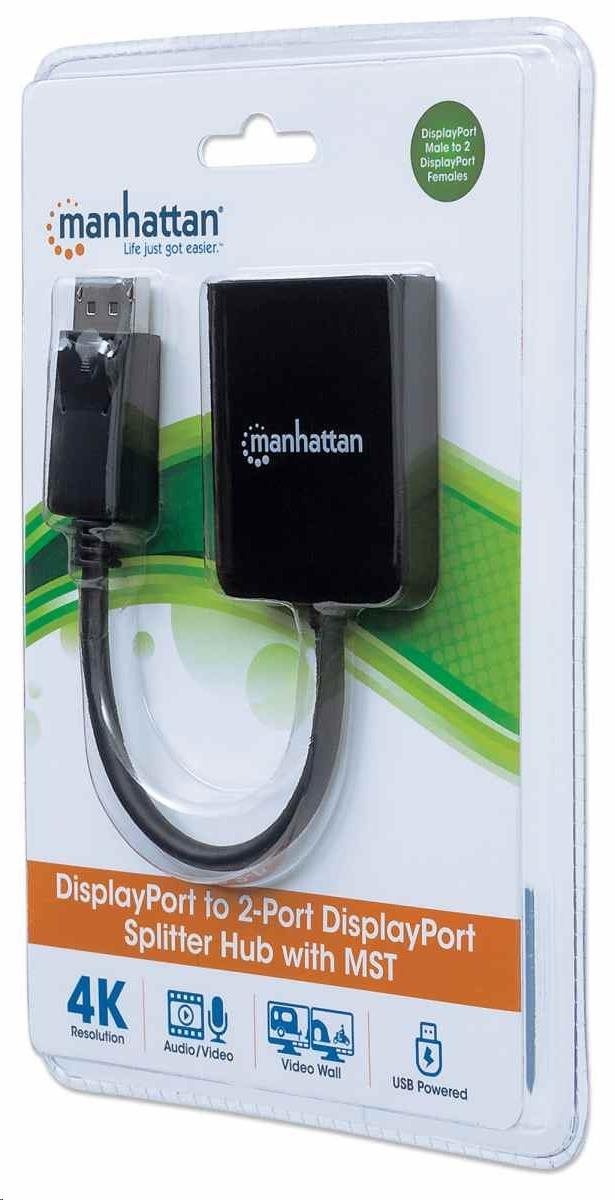

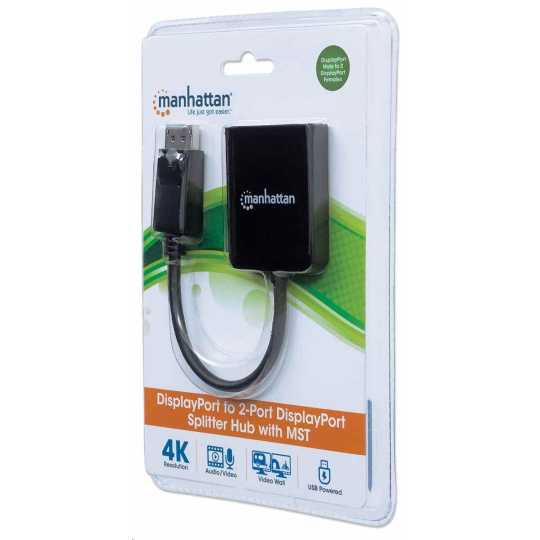

Package Contents DisplayPort to Dual DisplayPort - MST Hub
USB power cable
Quick Instruction Guide
Connections One DisplayPort (DP) male (input)
Two DisplayPort (DP) female (output)
One 5 V / 2 A USB Micro-B power female (input)
Signal Input/Output
Input video signal 0.5 – 1.0 V p-p
Input DDC signal 5 V p-p (TTL)
Maximum single-link range 5.4 Gbps, 3840x2160 at 30 Hz resolution
Output video HDCP 2.2, DVI 1.0
Video Resolutions
DTV/HDTV 480i/480p/576i/576p/720p/1080i/1080p/4K@30Hz
Physical
Dimensions 255 x 50 x 11 mm (9.8 x 2.0 x 0.4 in.)
5 V / 1 A USB Micro-B power cable 1 m (3 ft.)
Weight 50 g (1.8 oz.)
Housing plastic
Operating Environment
Operation Temperature 0 – 40°C (32 – 104°F)
Storage Temperature -20 – 60°C (-4 – 140°F)
Humidity (noncondensing) 0 – 96%

.
ParametryPorovnání
Druh IO zařízení
MST hub
Provedení
Externí
