TP-Link EAP670 v2 OMADA WiFi6 AP (AX5400,2,4GHz/5GHz,1x2,5GbELAN,1xPoE-in)
Popis a parametry
TP-Link EAP670 v2 OMADA WiFi6 AP (AX5400,2,4GHz/5GHz,1x2,5GbELAN,1xPoE-in)
TP-Link EAP670 v2
Přístupový bod AX5400 Wi-Fi 6 pro montáž na strop
- Bleskově rychlá WiFi 6 s rychlostí (574 Mb/s na 2,4 GHz + 4804 Mb/s na 5 GHz).
- Integrováno do Omada SDN, podporuje centralizovanou správu cloudu, ZTP a další.
- Kanál 160 MHz zdvojnásobuje data ve špičkách přenosu na jednom streamu.
- Pokročilé funkce: Podporuje bezproblémový roaming, Omada Mesh a další.
- Podporuje napájení 802.3at PoE+ i DC (adaptér je součástí balení) pro flexibilní instalaci.
Více informací o Omada Wi-Fi 6>?
Více informací o Omada Cloud SDN>?
Stránky produktu: https://www.tp-link.com/cz/business-networking/omada-wifi-ceiling-mount/eap670/v2/
Technické specifikace
| HARDWARE FEATURES | |
| Interface | 1× 2.5 Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE) |
| Button | Reset |
| Power Supply | • 802.3at PoE • 12 V / 2 A DC (Power Adapter included) |
| Power Consumption | • EU: 20.8 W • US: 22.3 W |
| Dimensions ( W x D x H ) | 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm) |
| Antenna Type | Internal Omni • 2.4 GHz: 2× 4 dBi • 5 GHz: 4× 5 dBi |

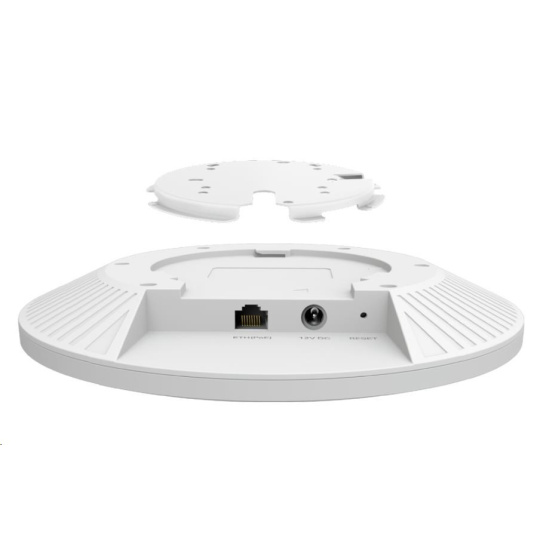

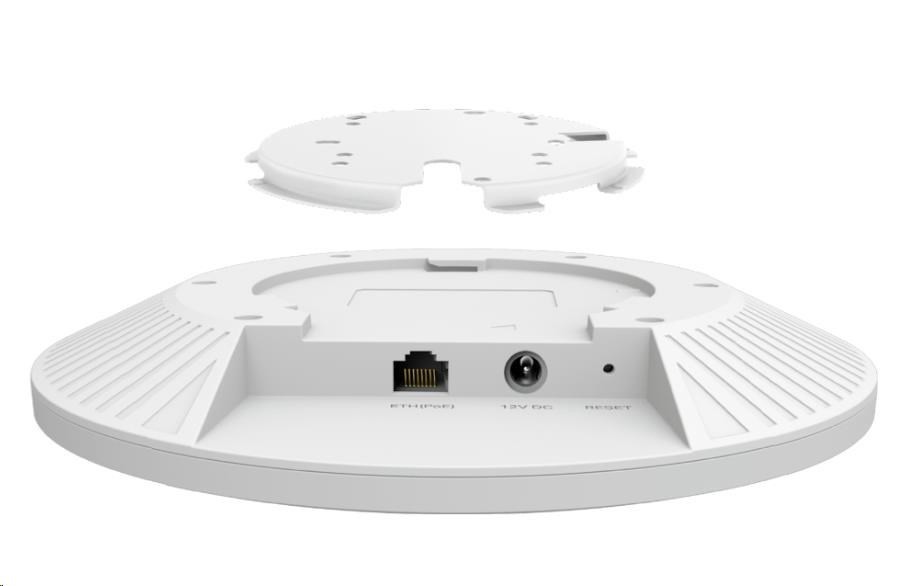

| Mounting | Ceiling /Wall Mounting (Kits included) |
| WIRELESS FEATURES | |
| Wireless Client Capacity | 250+** |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | • 5 GHz: Up to 4804 Mbps • 2.4 GHz: Up to 574 Mbps |
| Wireless Functions | • 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • MU-MIMO • HE160 (160 MHz Bandwidth)‡ • Seamless Roaming § • Omada Mesh§ • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client |
| Wireless Security | • Captive Portal Authentication§ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | • CE: • FCC: |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller |
| Cloud Access | Yes. Require the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Require the use of Omada Cloud-Based Controller. |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | • EAP670 • Power Adapter • Ceiling/Wall Mounting Kits • Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | • Operating Temperature: 0–40 °C (32–104 °F) • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
.
ParametryPorovnání
Typ aktivního prvku
MU-MIMO
Frekvenční pásmo (GHz)
5
Připojení externí antény
Ne
Podporované standardy
802.11a/n
USB port
Ne
Další vlastnosti
PoE (Power over ethernet)
Slot na SIM kartu
Ne
Počet portů LAN
1
Použití
Vnitřní
Zabezpečení
WPA-PSK
Typ antény
Integrovaná
Typy PoE
PoE - In
Počet portů LAN
1
