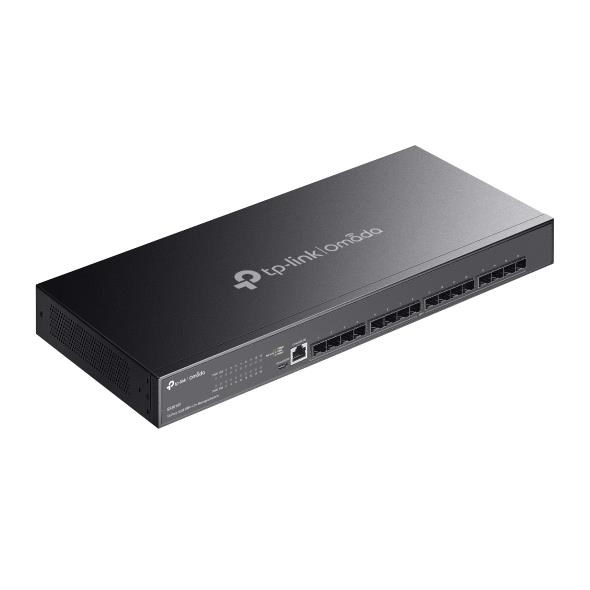

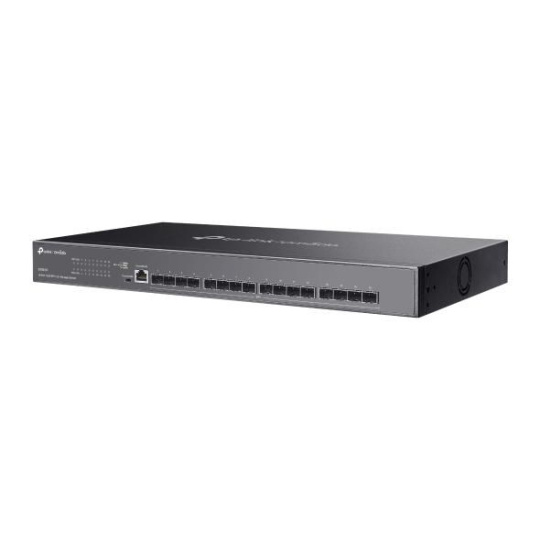

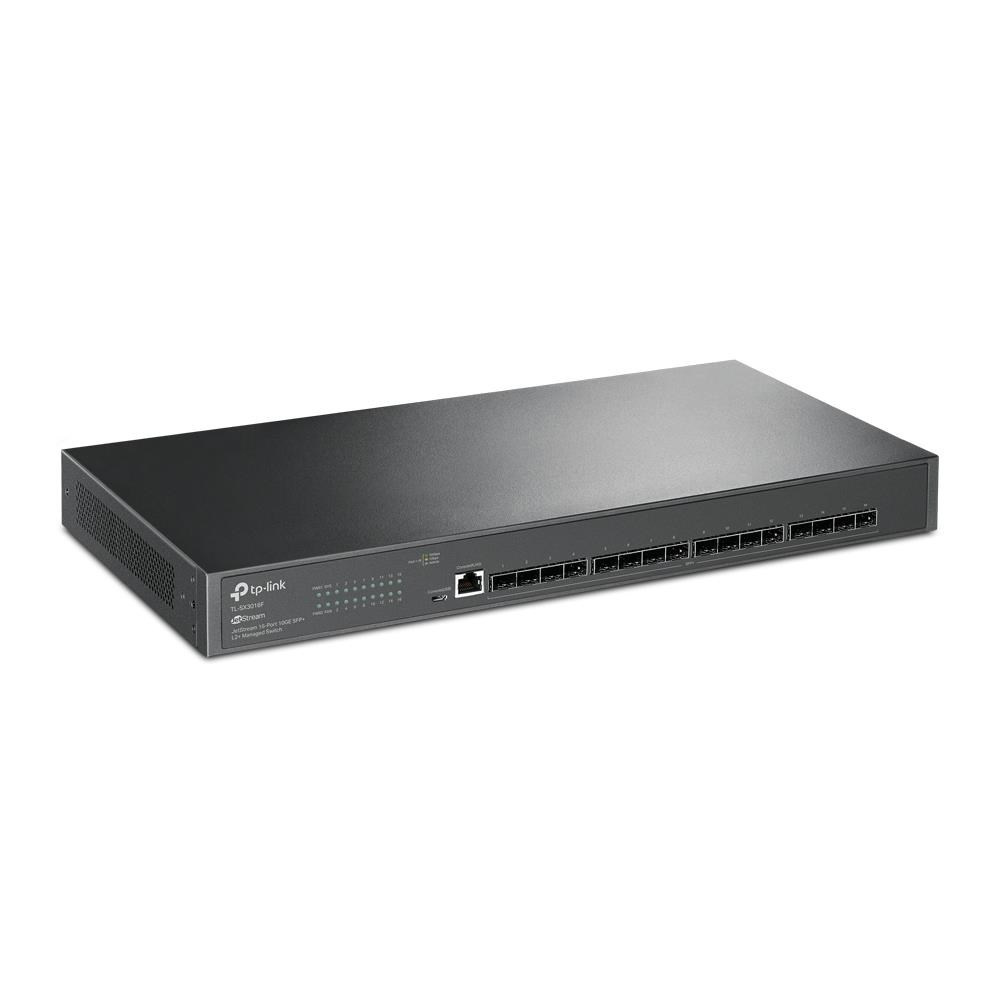

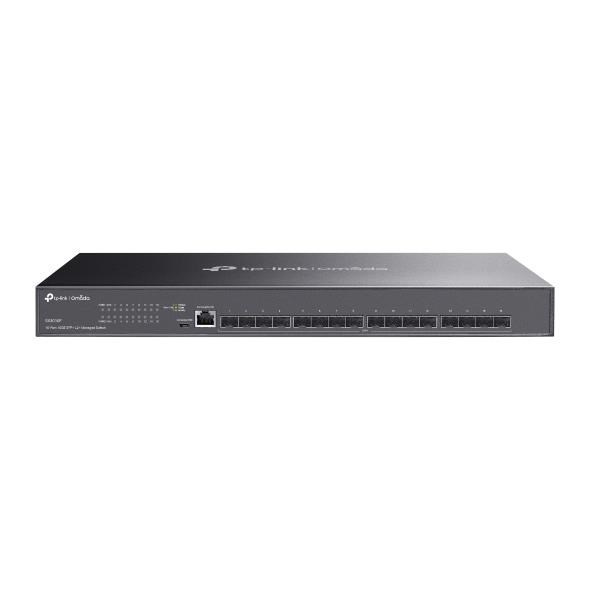

TP-Link OMADA switch SX3016F (16xSFP+, 2xconsole)
Popis a parametry
TP-Link OMADA switch SX3016F (16xSFP+, 2xconsole)
TP-Link OMADA switch SX3016F
16portový 10GE SFP+ L2+ řízený switch
- Bleskurychlá připojení 10G - 16 portů SFP+ s rychlostí 10 Gbit/s poskytuje vysoce propustné širokopásmové připojení a přepínací kapacitu 160 Gbit/s bez blokování.
- Integrováno do platformy Omada SDN - Funkce ZTP (Zero-Touch Provisioning), centralizovaná cloudová správa a inteligentní monitorování.
- Centralizovaná správa - Snadná a pohodlná správa přes cloudové rozhraní a aplikaci Omada.
- Statické směrování - Směruje tok dat po lokální síti, čímž zajišťuje efektivní využívání síťových prostředků.
- Robustní strategie zabezpečení - Funkce vázání na adresu IP-MAC, ACL, zabezpečení portů, ochrana proti útokům DoS, funkce Storm Control, funkce DHCP Snooping, ověřování protokolem 802.1X a Radius zajistí bezpečnost vašich dat.
- Optimalizované hlasové a video aplikace - L2/L3/L4 QoS a funkce IGMP Snooping.
- Samostatná správa - Webové rozhraní, CLI (konzolový port, Telnet, SSH), SNMP, RMON a funkce Dual Image přináší pokročilé možnosti správy.
Více informací o Omada Cloud SDN>?
Více informací o 10G multi-gigabitové technologii TP-Link >
Stránky produktu: https://www.tp-link.com/cz/business-networking/managed-switch/sx3016f/
Technické specifikace
| HARDWARE FEATURES | |
| Interface | • 16× 10GE SFP+ Slots • 1× RJ45 Console Port • 1× Micro-USB Console Port |
| Fan Quantity | 1 |
| Power Supply | 100-240 V AC~50/60 Hz |
| Dimensions ( W x D x H ) | 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | 32.74 W (220 V / 50 Hz) |
| Max Heat Dissipation | 111.71 BTU/hr (220 V / 50 Hz) |
| PERFORMANCE | |
| Switching Capacity | 320 Gbps |
| Packet Forwarding Rate | 238.08 Mpps |
| MAC Address Table | 32 K |
| Packet Buffer Memory | 24 Mbit |
| Jumbo Frame | 9 KB |
| SOFTWARE FEATURES | |
| Quality of Service | • 8 priority queues • 802.1p CoS/DSCP priority • Queue scheduling - SP (Strict Priority) - WRR (Weighted Round Robin) - SP+WRR • Bandwidth Control - Port/Flow based Rating Limiting • Smoother Performance • Action for Flows - Mirror (to supported interface) - Redirect (to supported interface) - Rate Limit - QoS Remark |
| L2 and L2+ Features | • Link Aggregation - static link aggregation - 802.3ad LACP - Up to 8 aggregation groups, containing 8 ports per group • Spanning Tree Protocol - 802.1d STP - 802.1w RSTP - 802.1s MSTP - STP Security: TC Protect, BPDU Filter, Root Protect • Loopback Detection - Port based - VLAN based • Flow Control - 802.3x Flow Control - HOL Blocking Prevention • Mirroring - Port Mirroring - CPU Mirroring - One-to-One - Many-to-One - Tx/Rx/Both |
| L2 Multicast | • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave - IGMP Snooping Querier - IGMP Authentication • IGMP Authentication • MLD Snooping - MLD v1/v2 Snooping - Fast Leave - MLD Snooping Querier - Static Group Config - Limited IP Multicast • MVR • Multicast Filtering: 256 profiles and 16 entries per profile |
| VLAN | • VLAN Group - Max 4K VLAN Groups • 802.1Q Tagged VLAN • MAC VLAN: 30 Entries • Protocol VLAN: Protocol Template 16, Protocol VLAN 16 • Private VLAN • GVRP • VLAN VPN (QinQ) - Port-Based QinQ - Selective QinQ • Voice VLAN |
| Access Control List | • Time-based ACL • MAC ACL - Source MAC - Destination MAC - VLAN ID - User Priority - Ether Type • IP ACL -Source IP - Destination IP - Fragment - IP Protocol - TCP Flag - TCP/UDP Port - DSCP/IP TOS - User Priority • Combined ACL • Packet Content ACL • IPv6 ACL • Policy - Mirroring - Redirect - Rate Limit - QoS Remark • ACL apply to Port/VLAN |
| Security | • IP-MAC-Port Binding - 512 Entries - DHCP Snooping - ARP Inspection - IPv4 Source Guard: 100 Entries • IPv6-MAC-Port Binding - 512 Entries - DHCPv6 Snooping - ND Detection - IPv6 Source Guard: 100 Entries • DoS Defend • Static/Dynamic Port Security - Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control - kbps/ratio control mode • 802.1X - Port base authentication - Mac base authentication - VLAN Assignment - MAB - Guest VLAN - Support Radius authentication andaccountability • AAA (including TACACS+) • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/Port/MAC based access control |
| IPv6 | • IPv6 Dual IPv4/IPv6 • Multicast Listener Discovery (MLD) Snooping • IPv6 ACL • IPv6 Interface • Static IPv6 Routing • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications - DHCPv6 Client - Ping6 - Tracert6 - Telnet (v6) - IPv6 SNMP - IPv6 SSH - IPv6 SSL - Http/Https - IPv6 TFTP |
| L3 Features | • 16 IPv4/IPv6 Interfaces • Static Routing - 48 static routes • Static ARP - 128 Static Entries • Proxy ARP • Gratuitous ARP • DHCP Server • DHCP Relay - DHCP Interface Relay - DHCP VLAN Relay • DHCP L2 Relay |
| Advanced Features | • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule |
| MIBs | • MIB II (RFC1213) • Interface MIB (RFC2233) • Ethernet Interface MIB (RFC1643) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • RMON MIB (RFC2819) • RMON2 MIB (RFC2021) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIB |
| MANAGEMENT | |
| Omada App | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
| Cloud Access | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Management Features | • Web-based GUI • Command Line Interface (CLI) through the console port, telnet • SNMP v1/v2c/v3 - Trap/Inform - RMON (1,2,3,9 groups) • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP AutoInstall • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • Password Recovery • SNTP • System Log |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | • TL-SX3016F Switch • 2× Power Cords • Quick Installation Guide • Rackmount Kit • Rubber Feet |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | • Operating Temperature: 0–45 °C (32–113 °F); • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
.
ParametryPorovnání
Maximální počet portů
16
Technologie
10 Gigabit optika
Management
Web
Provedení
Rack mounted 19"
Funkce
QoS (Quality of service)
Funkce
VLAN (virtual local area network)
Funkce
L2
Funkce
DHCP snooping
Funkce
Web management/Smart switch
Funkce
L2+
Počet SFP+ portů
16
Počet portů LAN
16
Ventilátor
Ano
Počet portů LAN
16
Maximální počet portů
16
Počet SFP+ portů
16
