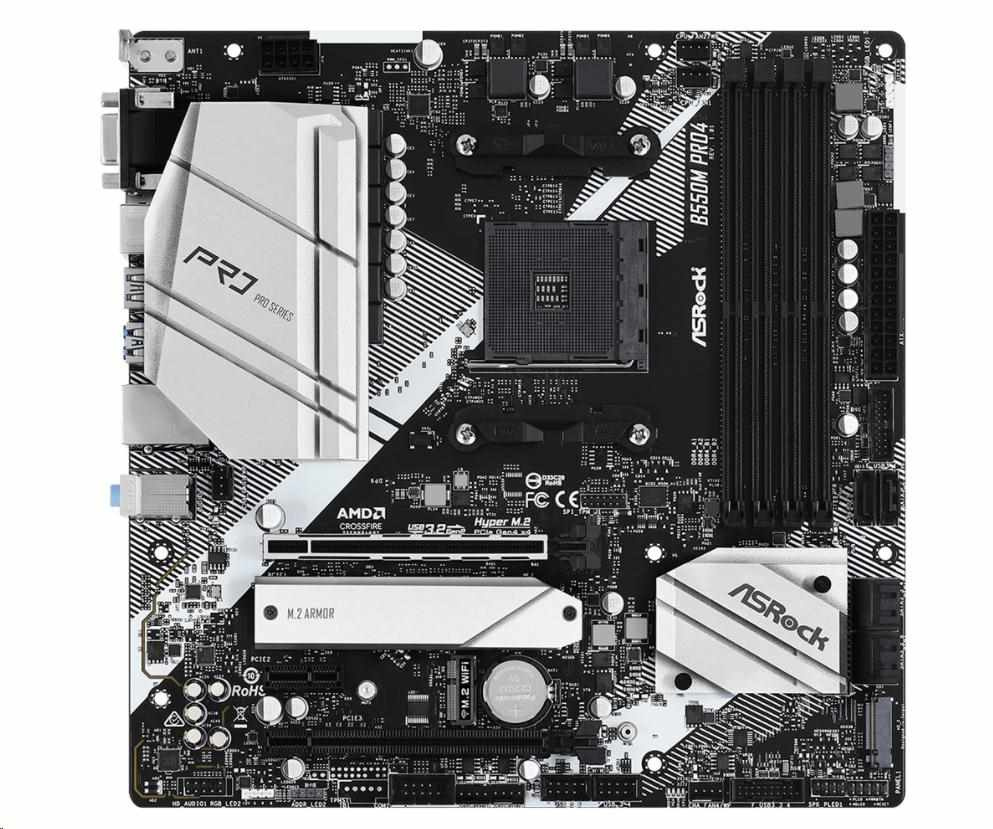

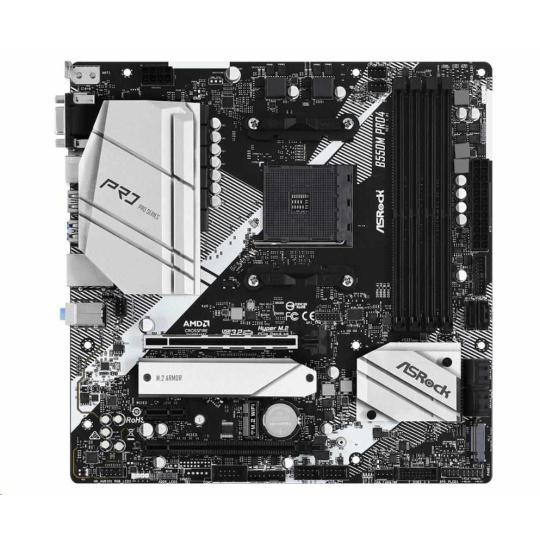

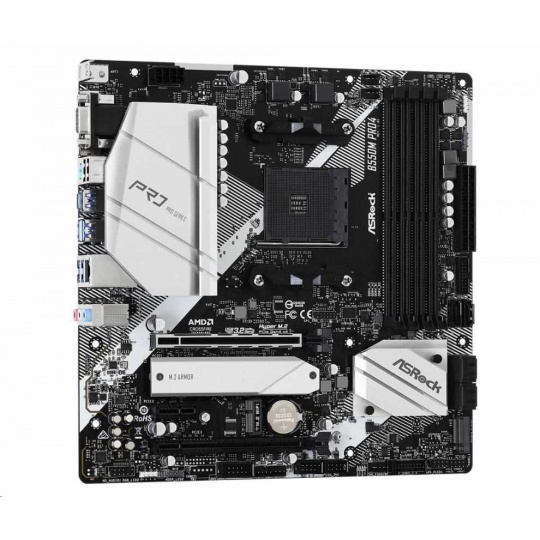

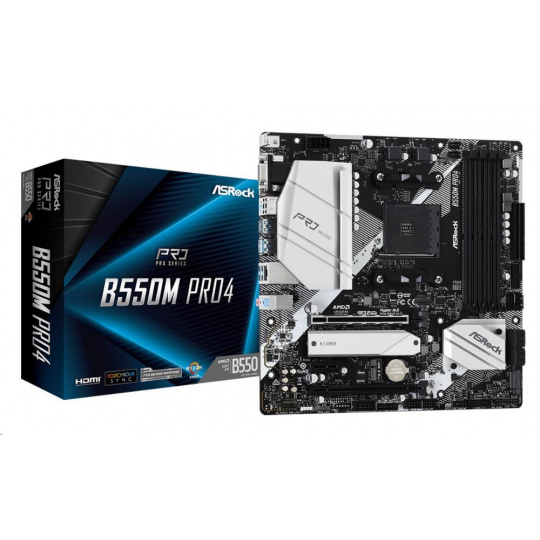

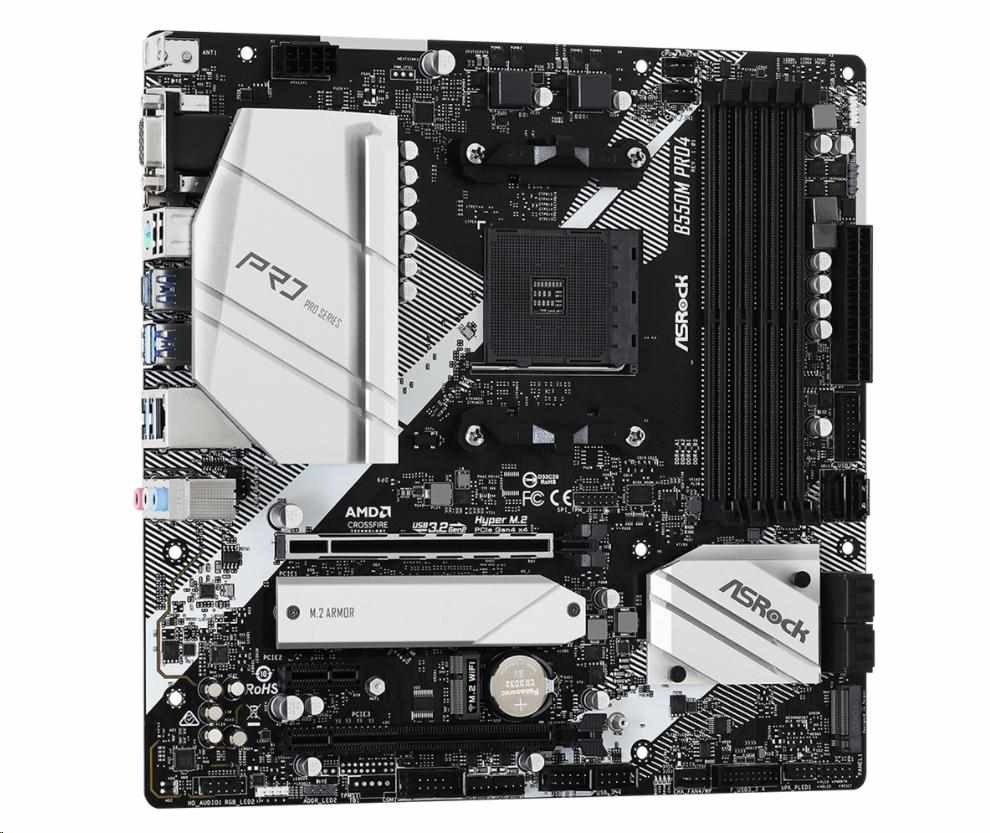

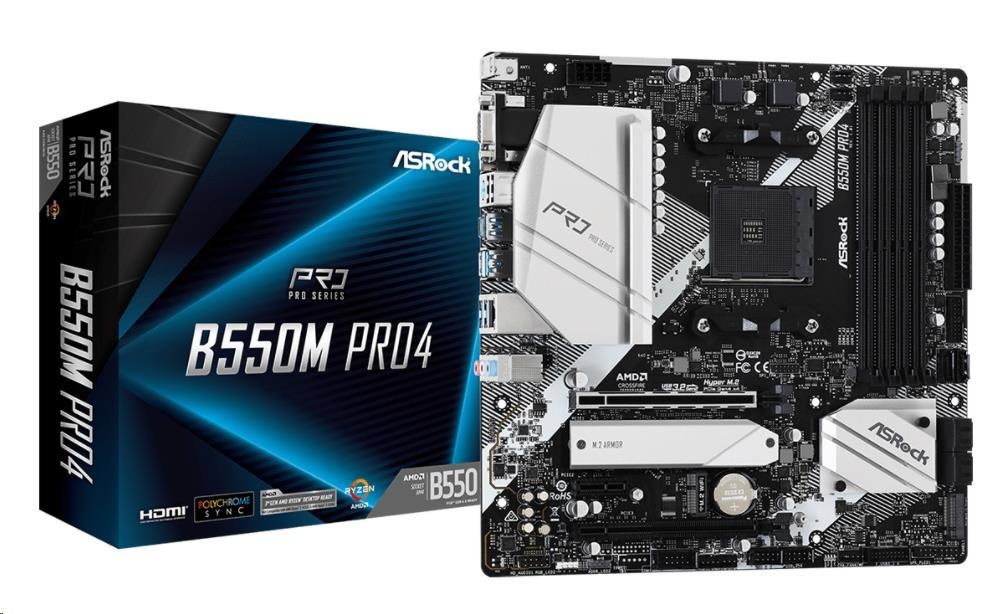

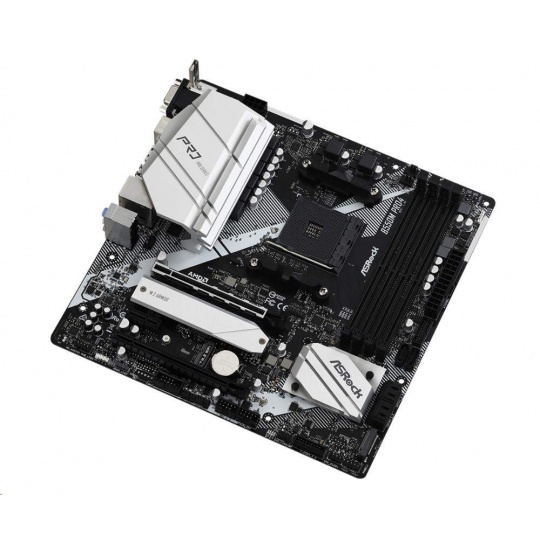

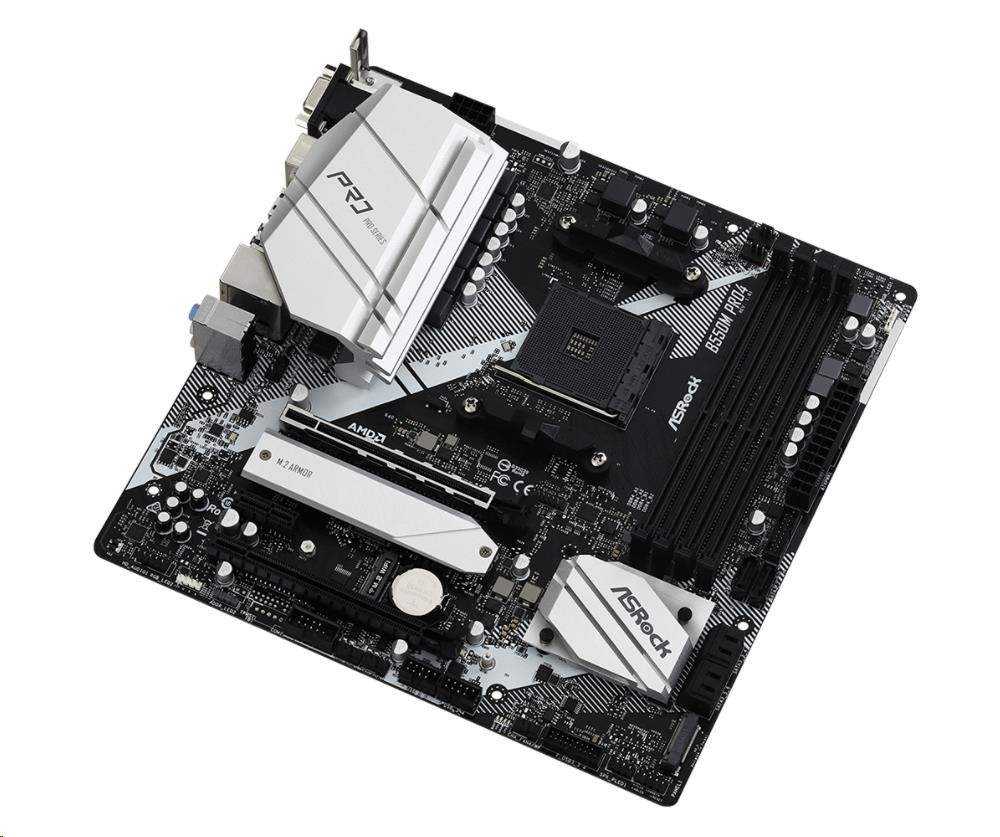

ASRock MB Sc AM4 B550M PRO4, AMD B550, 4xDDR4, HDMI, DP

Name: ASRock MB Sc AM4 B550M PRO4, AMD B550, 4xDDR4, HDMI, DP
Brand: ASRock
SKU: 380627
Price: 2434 CZK
Availability: InStock

-9%

Kód: 380627

Kód dod.: B550M PRO4

EAN: 4710483931598

Záruka: 36 Měsíc(ů)

Výrobce: ASRock

Do oblíbených Porovnání Dotaz prodejci Hlídání

Popis a parametry

ASRock MB Sc AM4 B550M PRO4, AMD B550, 4xDDR4, HDMI, DP

ParametryPorovnání

Technologie paměti RAM

DDR4

Socket (patice)

Socket AM4

Chipset

AMD

Chipset

AMD B550

PCI Express x16

Podpora RAID

COM port

Ano

LPT port

Formát základní desky

micro ATX

3.5mm Jack

Ano

Bezdrátové připojení

bez

Pro procesory

AMD

Počet paměťových slotů

DisplayPort

TPM

Ano

USB 2

USB 3

M.2 slot

SATA 3

VGA

HDMI

Led Header

Ano

PCI Express x1

USB C

LAN

1Gbit/s

ASRock MB Sc AM4 B550M PRO4, AMD B550, 4xDDR4, HDMI, DP

Unique Feature	ASRock USB 3.2 Gen2 - ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) - ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s) ASRock Super Alloy - XXL Aluminum Alloy Heatsink - Premium 50A Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB - 2oz Copper PCB ASRock Steel Slot Gen4 ASRock Full Coverage M.2 Heatsink ASRock Hyper M.2 (PCIe Gen4x4) ASRock POST Status Checker (PSC) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop
CPU	- Supports 3rd Gen AMD AM4 Ryzen™ / future AMD Ryzen™ Processors* - Digi Power design - 8 Power Phase design *Not compatible with AMD Ryzen™ 5 3400G and Ryzen™ 3 3200G.
Chipset	- AMD B550
Memory	- Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series APUs support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - Max. capacity of system memory: 128GB** - Supports Extreme Memory Profile (XMP) memory modules - 15µ Gold Contact in DIMM Slots*
Graphics	- Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU* - DirectX 12, Pixel Shader 5.0 - Shared memory default 2GB. Max Shared memory supports up to 16GB.** - Three graphics output options: D-Sub, HDMI and DisplayPort 1.4 - Supports Triple Monitor - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DisplayPort 1.4 with max. resolution up to 5K (5120x2880)@120Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) - Supports HDR (High Dynamic Range) with HDMI 2.1 - Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports - Supports Microsoft® PlayReady Actual support may vary by CPU *The Max shared memory 16GB requires 32GB system memory installed.
Slots	AMD Ryzen series CPUs (Matisse) - 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode)* AMD Ryzen series APUs - 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode)* - 1 x PCI Express 3.0 x1 Slot - Supports AMD Quad CrossFireX™ and CrossFireX™ - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module *Supports NVMe SSD as boot disks
Storage	- 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug* - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) - 1 x M.2 Socket (M2_2), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s) M2_2 and SATA3_5_6 share lanes. If either one of them is in use, the other one will be disabled. *Supports NVMe SSD as boot disks Supports ASRock U.2 Kit
LAN	- PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111H - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE
Connector	- 1 x COM Port Header - 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 2 x RGB LED Headers* - 2 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin)* - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection) Support in total up to 12V/3A, 36W LED Strip Support in total up to 5V/3A, 15W LED Strip The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. **The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP and CHA_FAN4/WP can auto detect if 3-pin or 4-pin fan is in use.
Audio	- 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection - PCB Isolate Shielding - Individual PCB Layers for R/L Audio Channel - Nahimic Audio

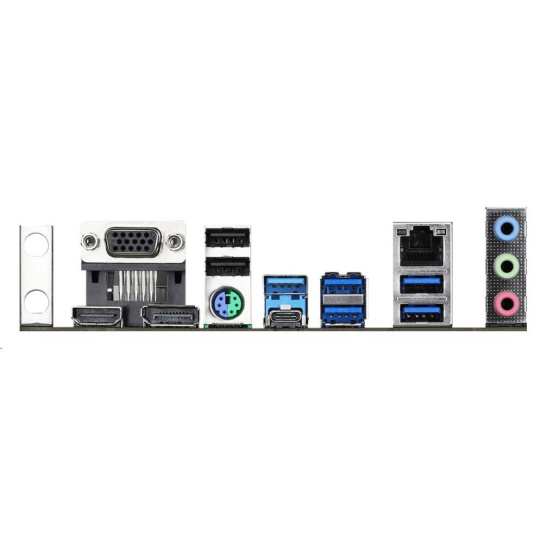

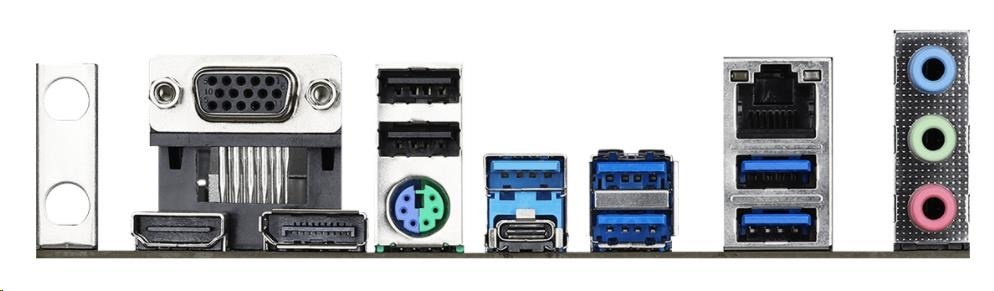

Rear panel I/O	- Antenna Bracket - 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) - 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI	Software - ASRock Motherboard Utility (A-Tuning) - ASRock XFast LAN UEFI - ASRock Full HD UEFI - ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop.
Support CD	- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
BIOS	- 256Mb AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - CPU, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, 2.5V_PROM, +1.8VSB, VDDP Voltage Multi-adjustment
Accessories	- Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 2 x Screws for M.2 Sockets
Hardware Monitor	- Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans - Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans - Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, +1.8V, VDDP
Operating System	- Microsoft® Windows® 10 64-bit
Form Factor	- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm - Solid Capacitor design - 2oz Copper PCB
Certifications	- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
