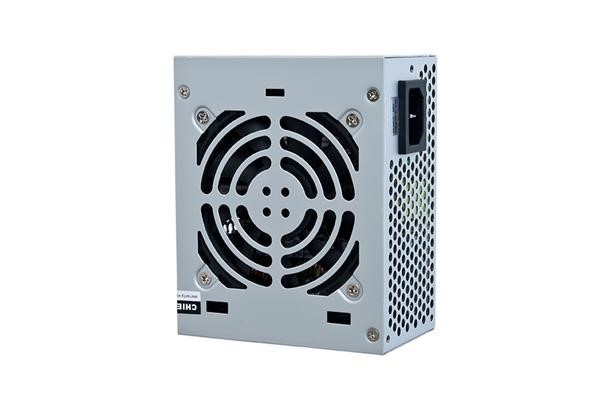

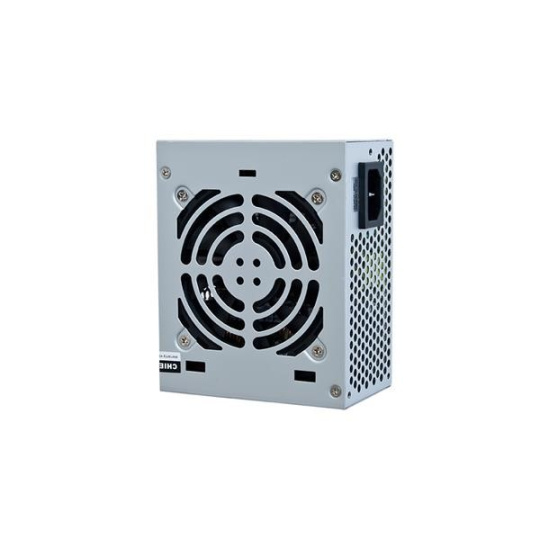

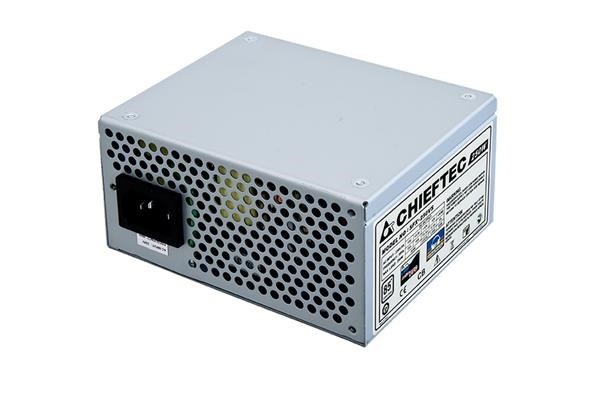

CHIEFTEC zdroj SFX 250W, active PFC, 8cm fan,> 85% efficiency, 230V
Popis a parametry
CHIEFTEC zdroj SFX 250W, active PFC, 8cm fan,> 85% efficiency, 230V
http://www.chieftec.eu/en/psus/smart-series/sfx-250vs.html
| Specification:
| ATX 12V 2.3
|
| Form factor:
| SFX
|
| Efficiency:
| >85%
|
| Dimension (DxWxH):
| 100 mm x 125 mm x 64 mm
|
| PFC:
| Active (0,9)
|
| Fan dimension:
| 80mm silent fan
|
| Performance
| |
| AC Input:
| 230V / 3A
|
| Frequency:
| 50 Hz
|
| +5V:
| 15A
|
| +3,3V:
| 14A
|
| +5V & +3,3V combined:
| 80W
|
| +12V 1:
| 18,5A / 220W
|
| +12V 2:
| N/A
|
| +12V 1 & +12V 2 combined:
| N/A
|
| +12V 3:
| N/A
|
| +12V 4:
| N/A
|
| +12V 3 & +12V 4 combined:
| N/A
|
| P.F.:
| >0,9
|
| -12V:
| 0,3A / 3,6W
|
| +5VSB:
| 3A / 15W
|
| Maximum Load:
| 250W
|
| Connectors
| |
| Native cable:
| |
| 20+4PIN:
| |
| ===300mm===[20+4PIN]
| |
| SATA:
| |
| ===300mm===[SATA]===150mm===[SATA]
| |
| Molex/Floppy:
| |
| ===300mm===[Molex]===150mm|===[Molex]===150mm===[Floppy]
| |
| 4PIN 12V:
| |
| ===300mm===[4PIN 12V]
|
ParametryPorovnání
Formát zdroje
SFX
Konektory
8pin CPU 1x
Konektory
SATA 15-pin
Konektory
Molex
Konektory
FDD
Konektory pro základní desku
ATX 24-pin
Konektory pro základní desku
ATX 20-pin
Konektory pro základní desku
EPS 8-pin
Efektivita zdroje
85+
Modulární kabeláž
Ne
Podsvícení
Bez podsvícení
Výkon zdroje (W)
250
