CPU

LGA1200 package:
11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors
L3 cache varies with CPU
(Please refer to "CPU Support List" for more information.)

Chipset

Intel® H470 Express Chipset

Memory

11th Generation Intel® Core™ i9/i7/i5 processors:
Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
10th Generation Intel® Core™ i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:
Support for DDR4 2666/2400/2133 MHz memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)

Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3.
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
* The D-Sub port is only available with the 10th Generation processors.
Support for up to 3 displays at the same time
* Only available with the 10th Generation processors.
(Graphics specifications may vary depending on CPU support.)

Storage

Chipset:
1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID5, and RAID 10 support for SATA storage devices

Expansion Slots

CPU:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

LAN

Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Audio

Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

USB

Chipset:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper

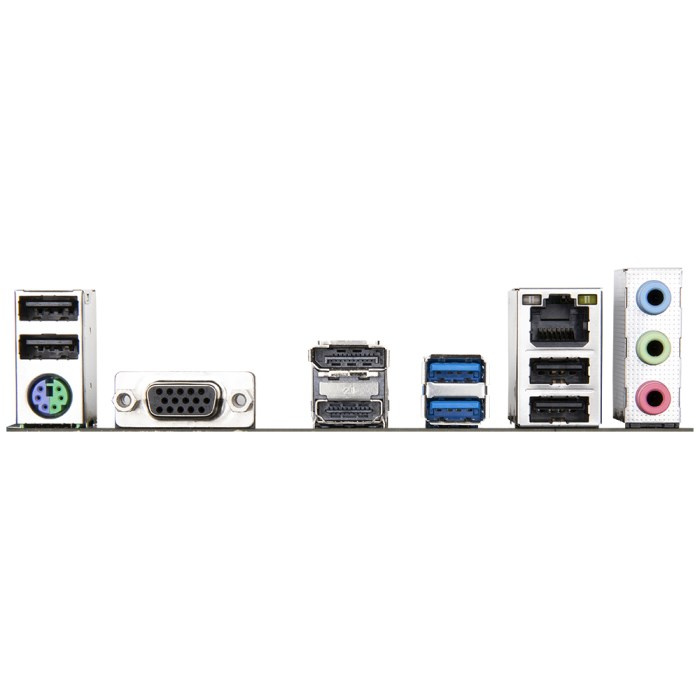

Back Panel I/O Ports

1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DisplayPort
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

Voltage detection
Temperature detection
Fan speed detection
Fan fail warning
Fan speed contro
* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
Ambient LED
EasyTune
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install

Bundled Software

Norton® Internet Security (OEM version)
LAN bandwidth management software

Operating System

Support for Windows 11 64-bit
Support for Windows 10 64-bit

Form Factor

Micro ATX Form Factor
22.6cm x 18.5cm
